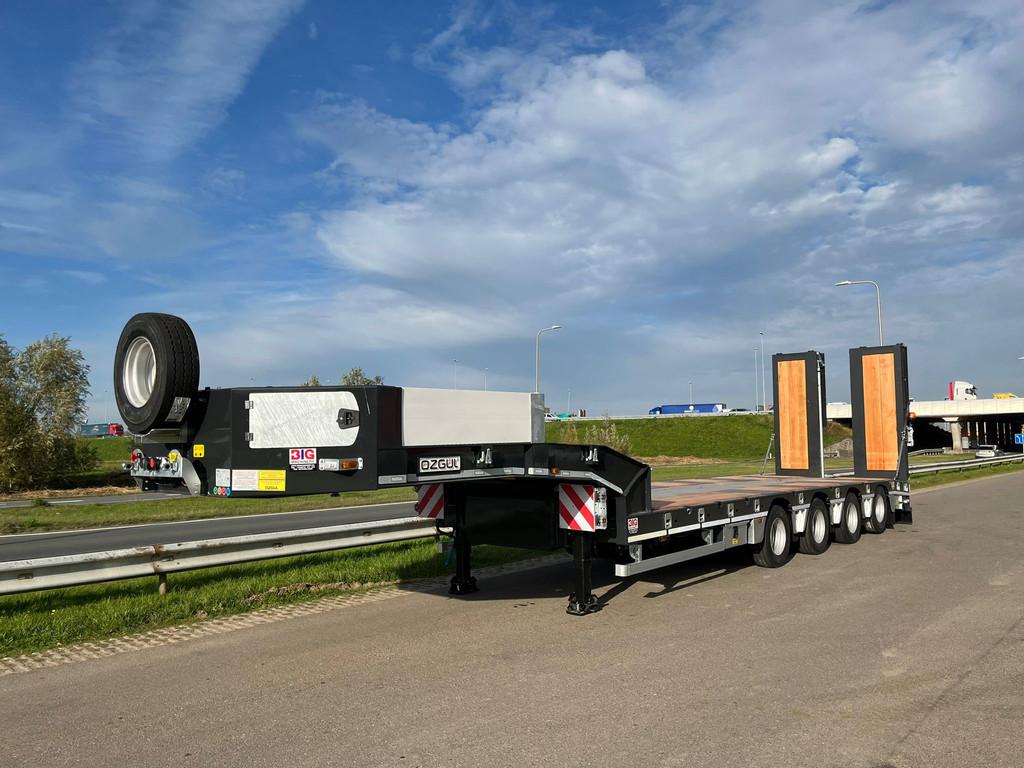

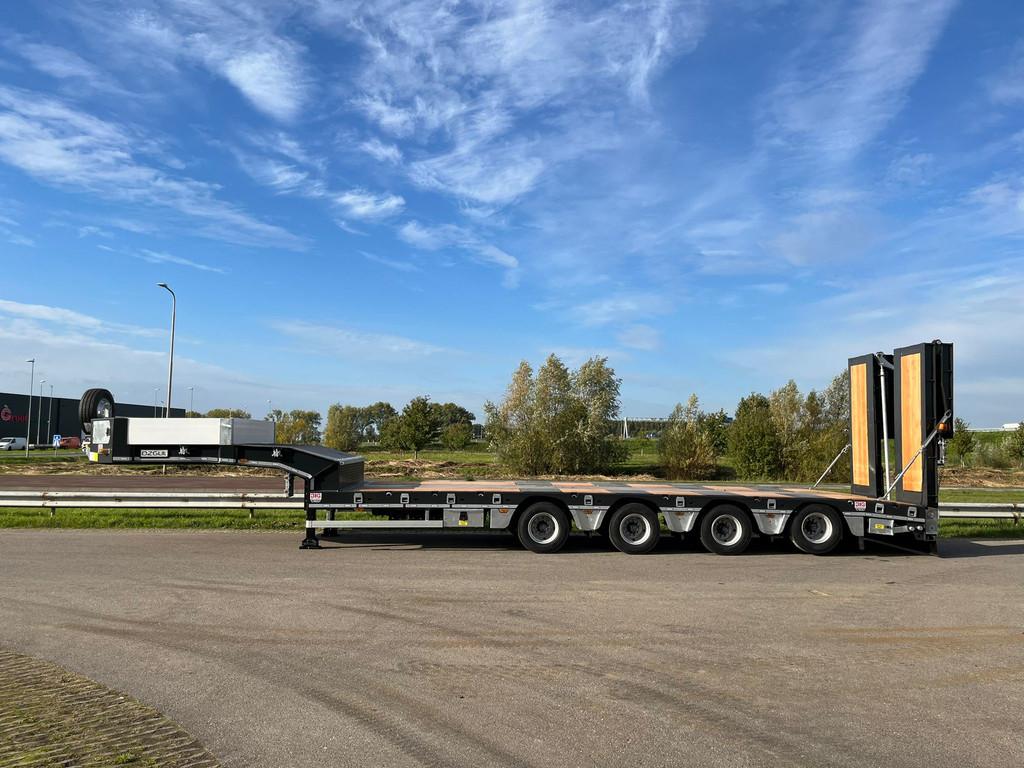

Ozgul LW4 EU 2SS Dutch registrated (OV-48-BV)

CE markering: ja
BTW: De getoonde prijs is exclusief BTW
Referentienummer: 00031282
COC beschikbaar: Ja

DEMO 15.000 km!

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
Gross Vehicle Weight (kg) : 70.000 Loading Platform Length (mm) : 9.000
Weight of Axle Group (kg) : 48.000 Total Lenght (mm) : 13.550
Kingpin Capacity (kg) :22.000 Total Width (mm) : 2.550
Curb Weight (kg) : 13.000 Loading Platform Height (mm) : 920
Pay Load (kg) : 57.000 Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
Base Chassis
Heavy duty and extra durability designed BOX type chassis All welded S355 steel
chassis. Outer frame is UPE 240 profile.
Welding (Chassis) : Automatic ARC submerged.
Welding (Superstructure) : Automatic robot welding.
Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand Drum brakes 4 x 12 Ton axles
Axle Lifting : 1st axle automatic 4th axle manuel lifting.
Suspension (Type) : Air Suspension.
Steering Axles : 3rd and 4th Axles self steering.

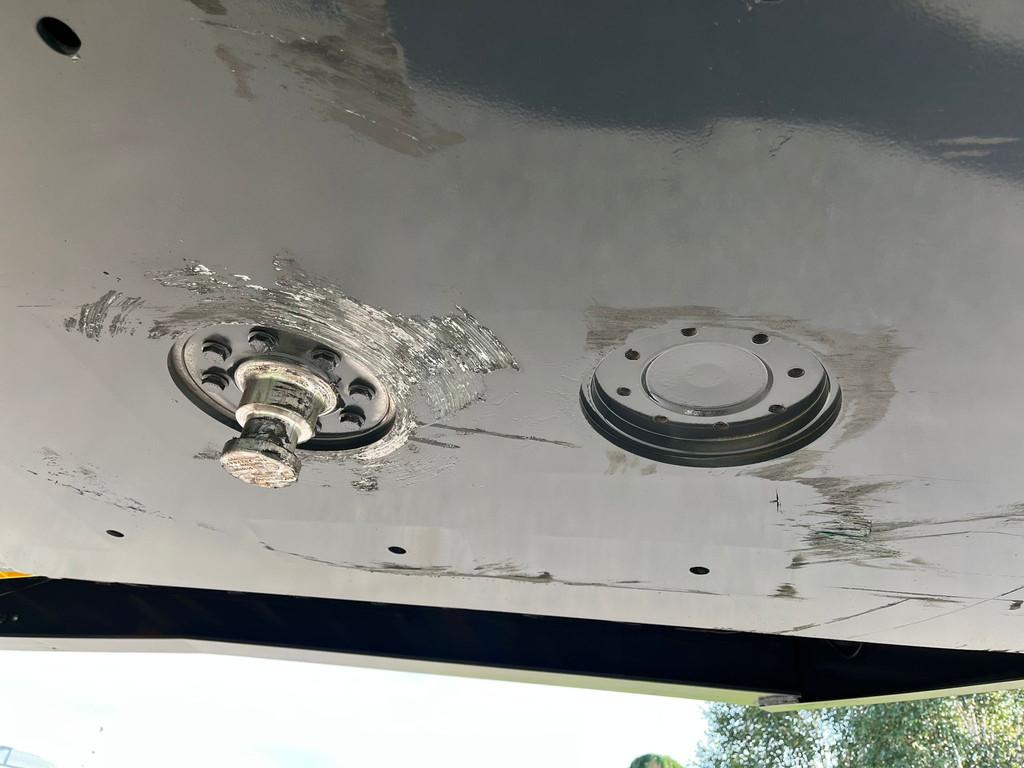

King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand.

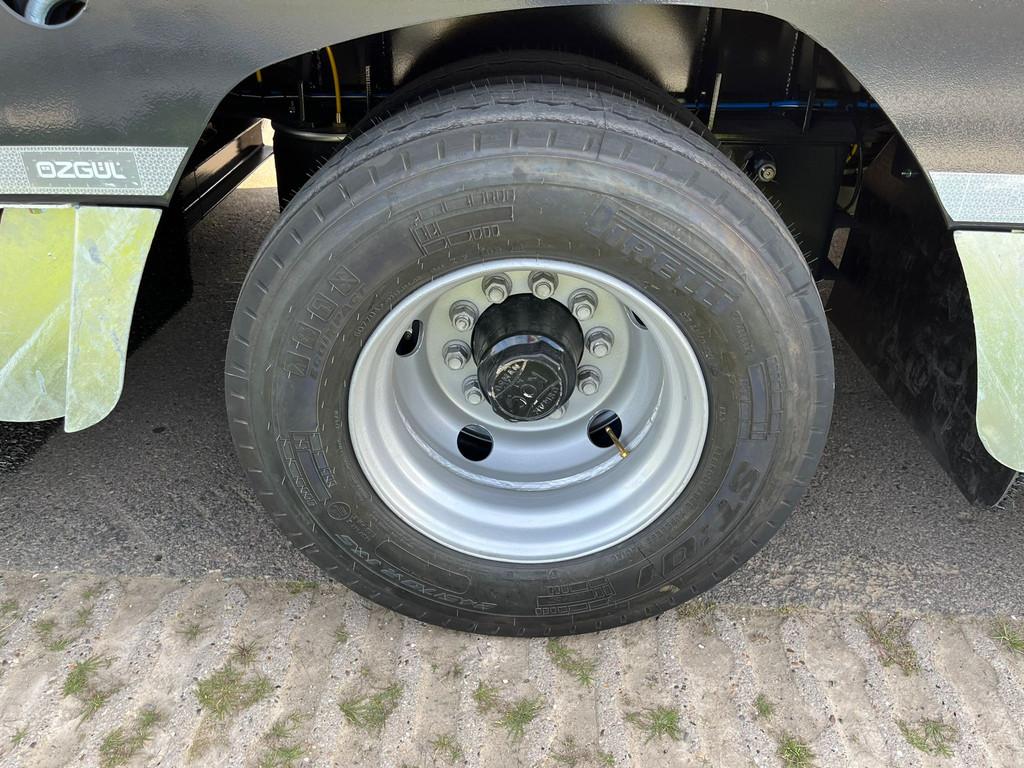

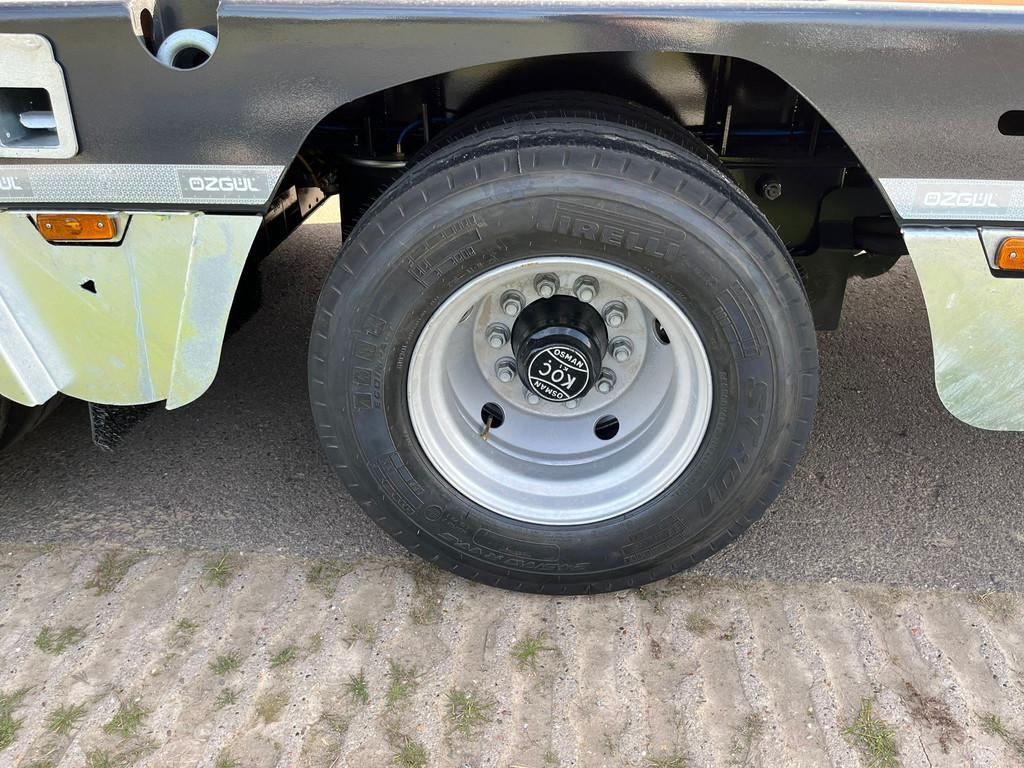

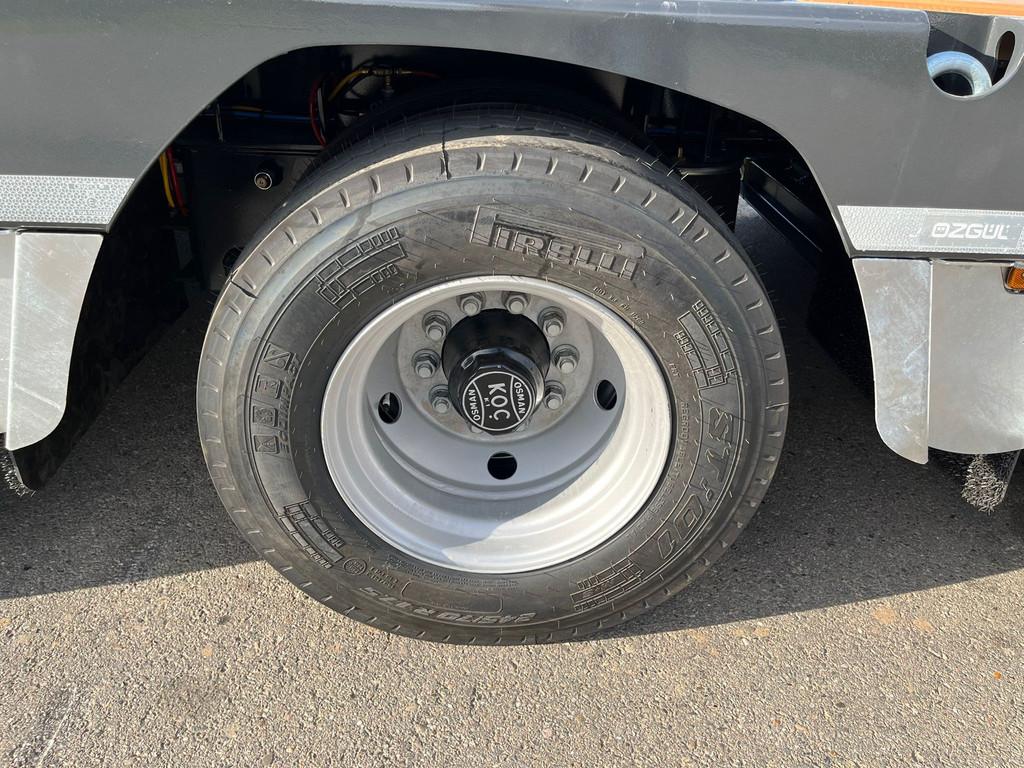

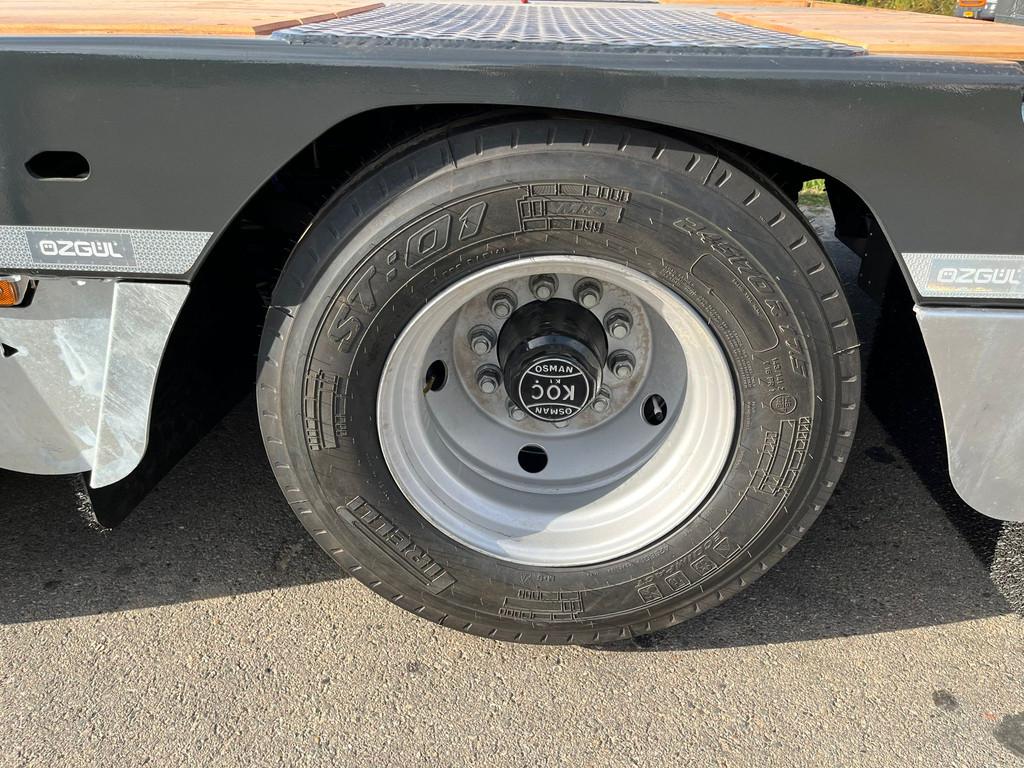

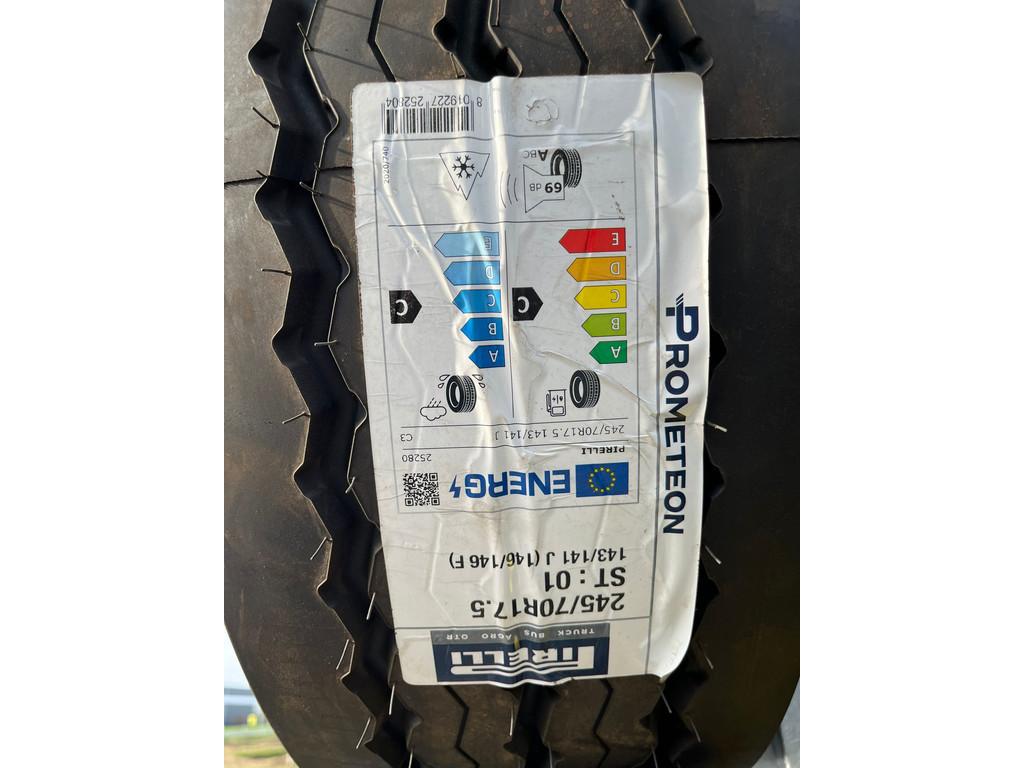

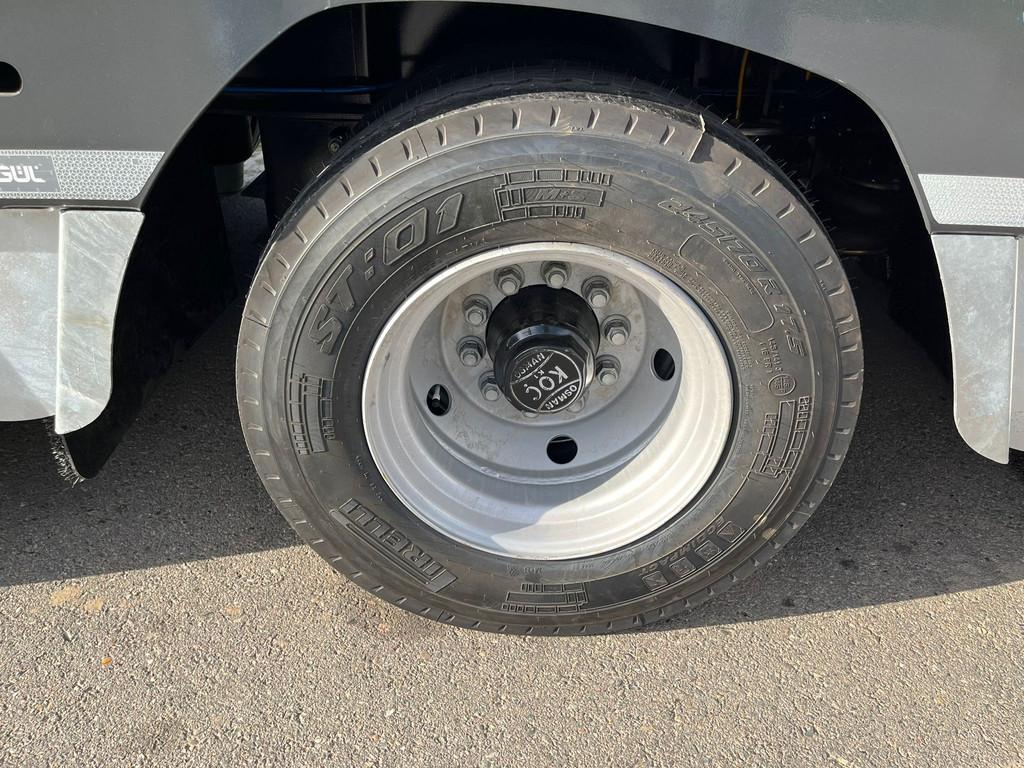

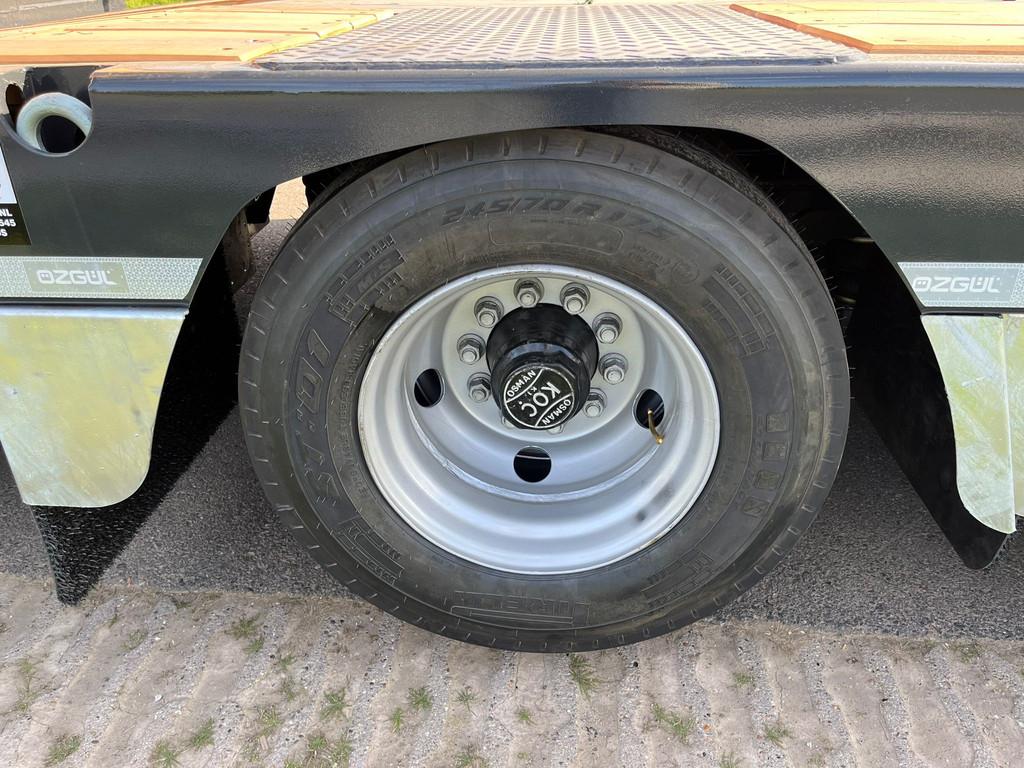

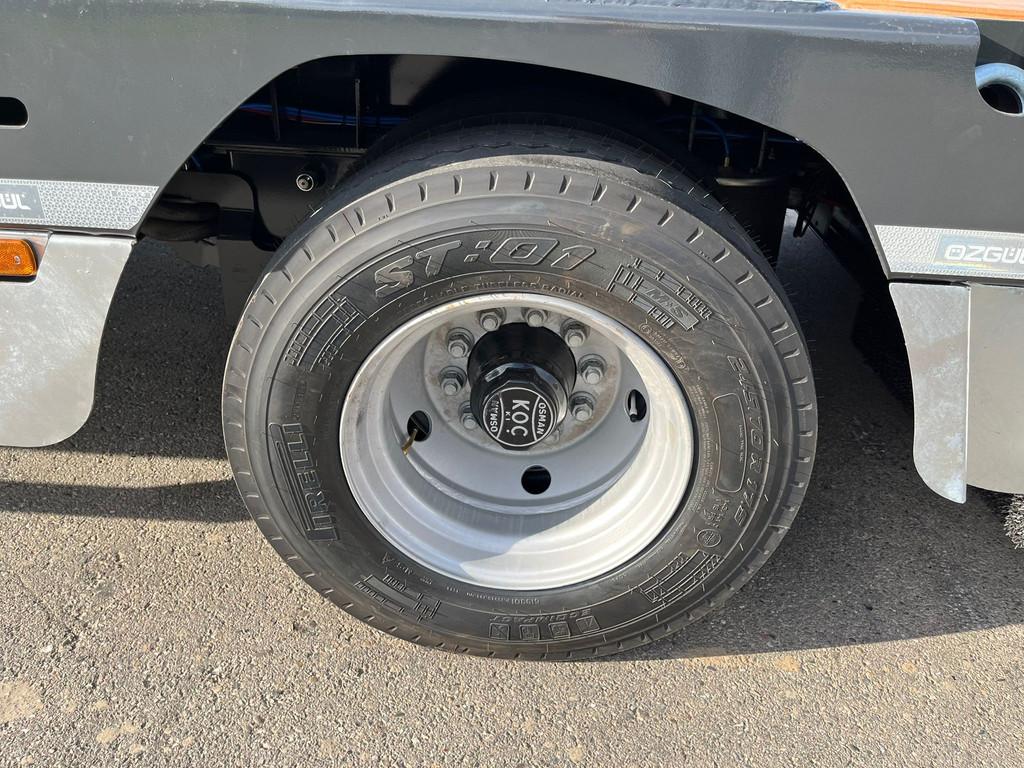

Tires : 16+1 Units, 245 / 70 R 17.5 Fulda or Pirelli or Goodyear Brand.

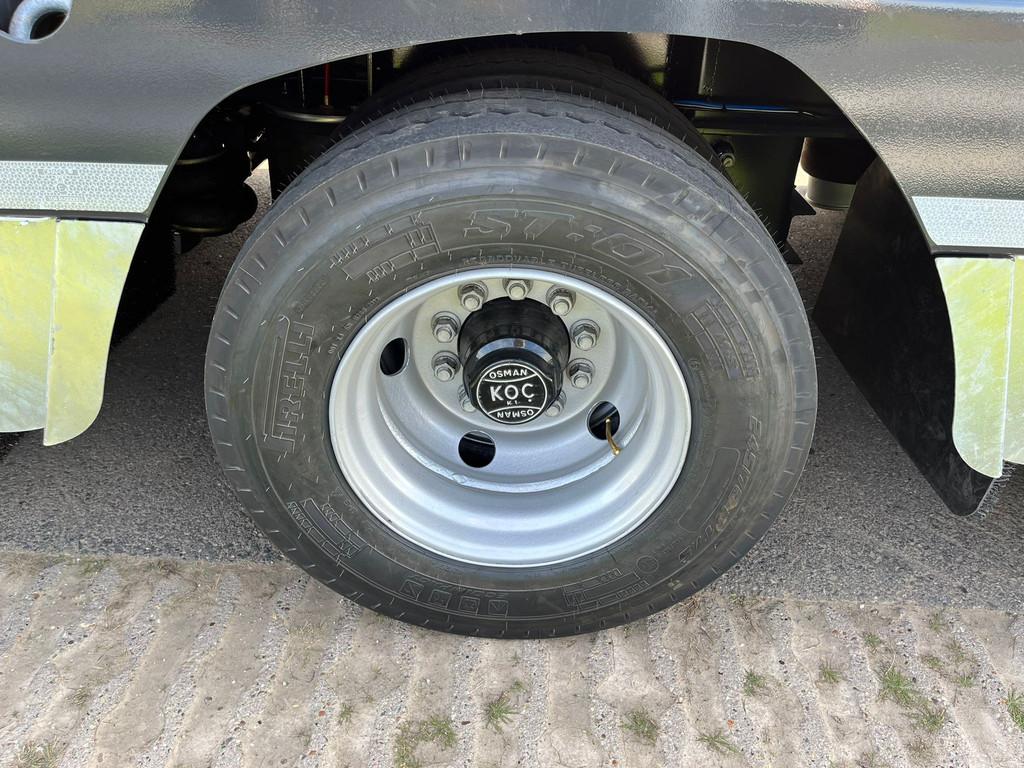

Rims : 16+1 Units, 6.75 x 17.5 steel rims. Jantas or Ako Brand.

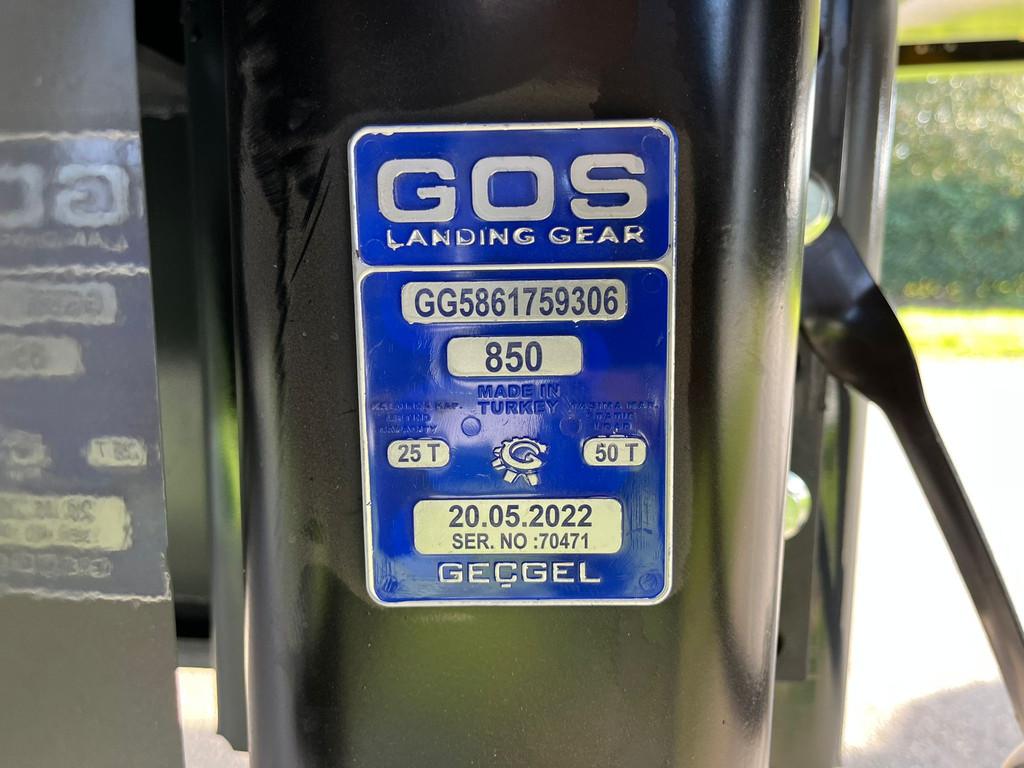

Landing Gear : Mechanical operated by one side, two speed. Gos Brand.

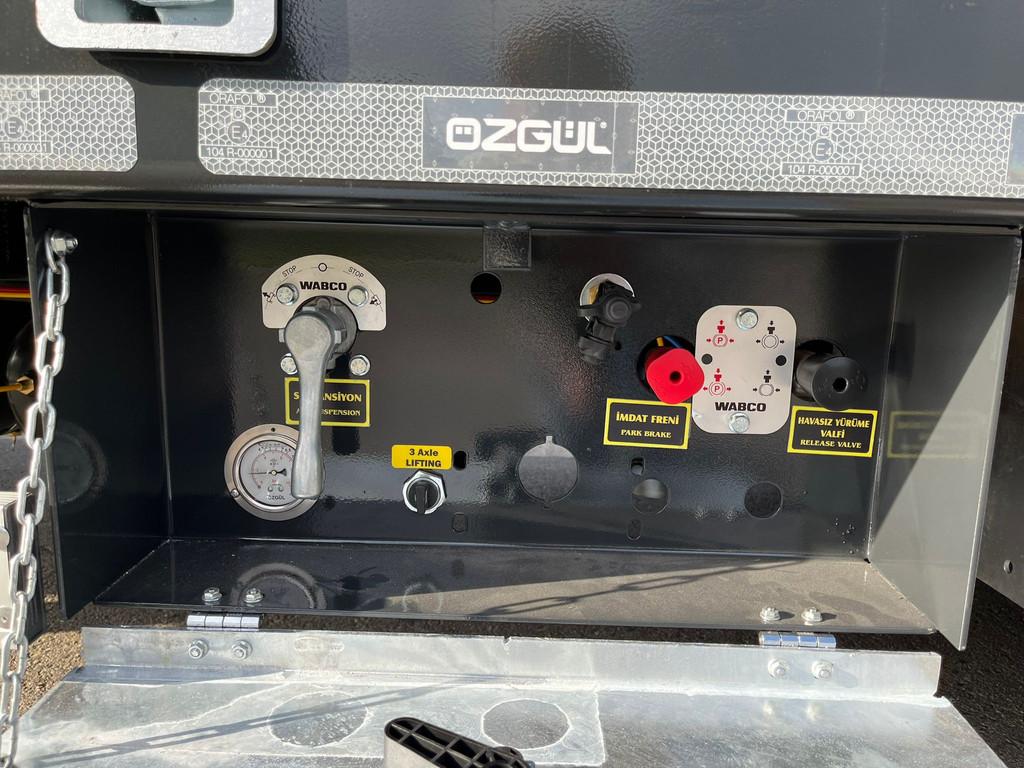

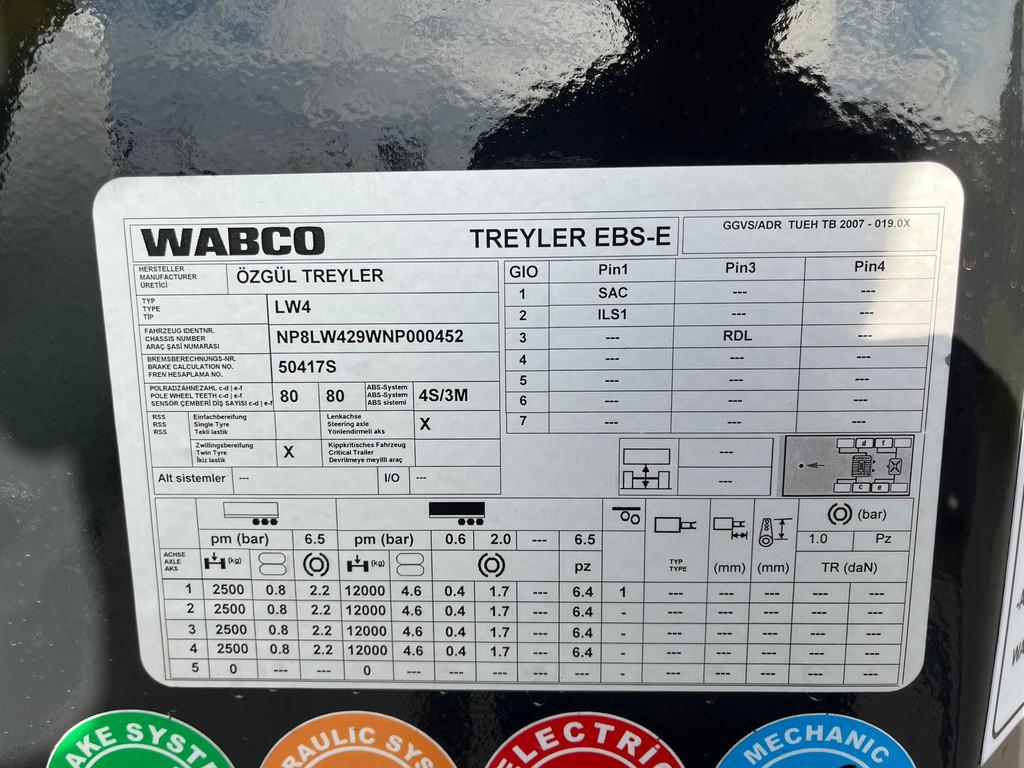

Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation.
Brake Chamber
2 axles with 4 units emergency brake chambers.
2 axle with 4 unit service brake chambers.
Electric System

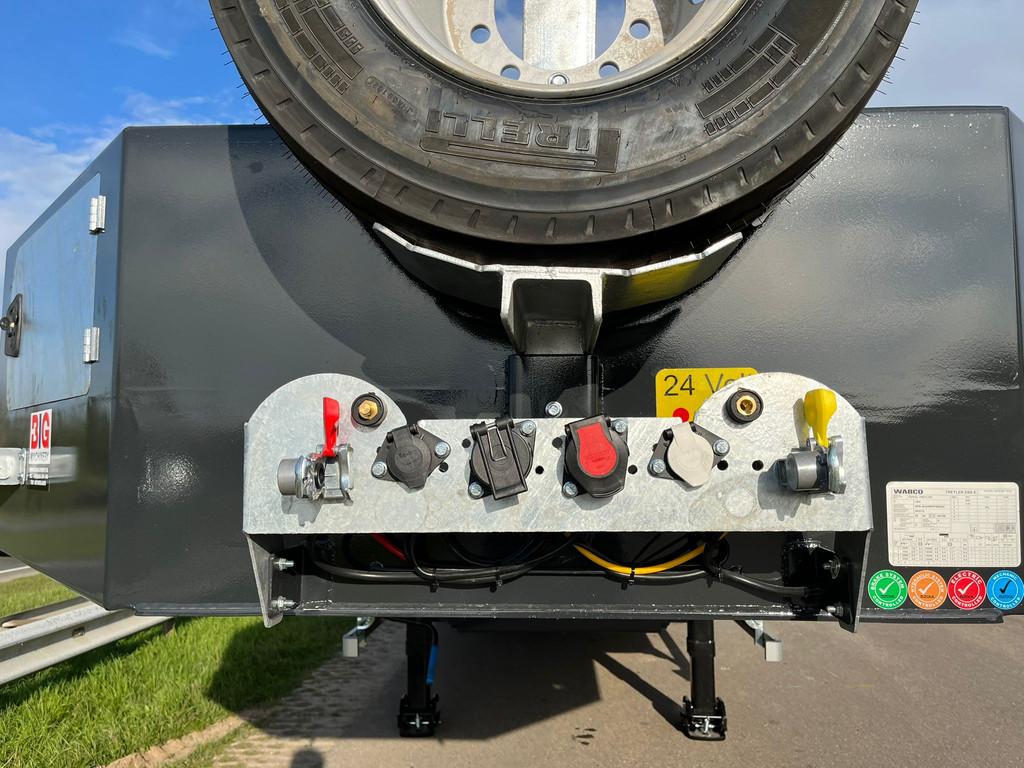

24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation
SABA Brand.
• 2 x Rear Stop Lights. - 4 x Side LED Lights.
• 2 x White LED Lights - 2 x Front LED Lights

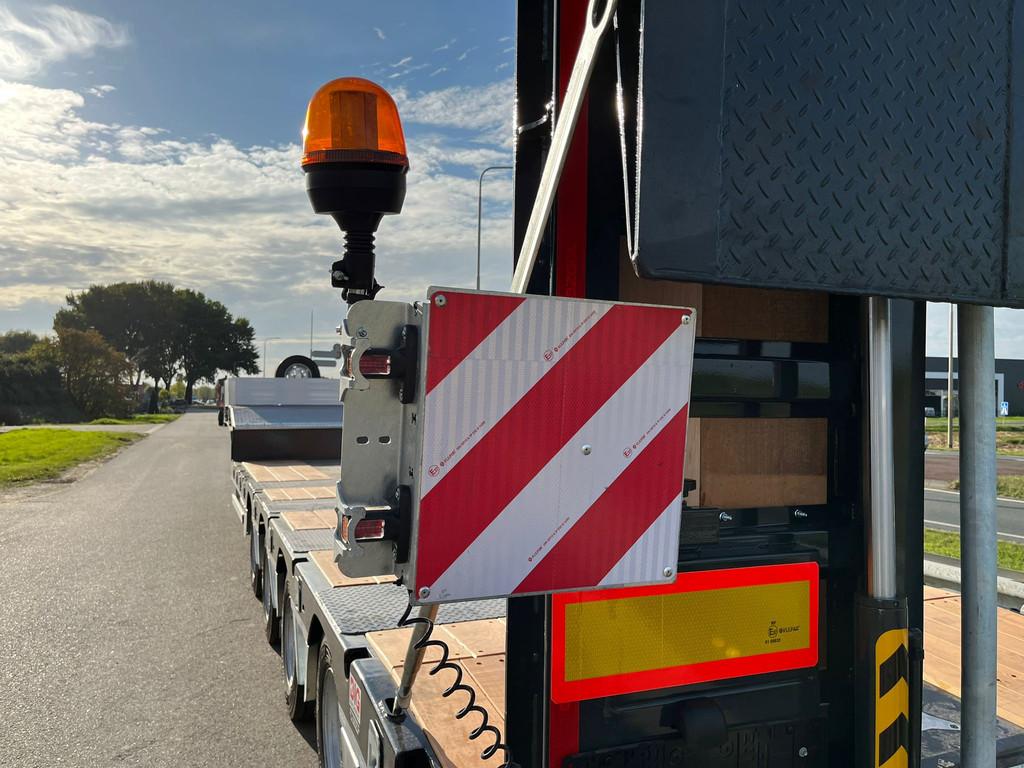

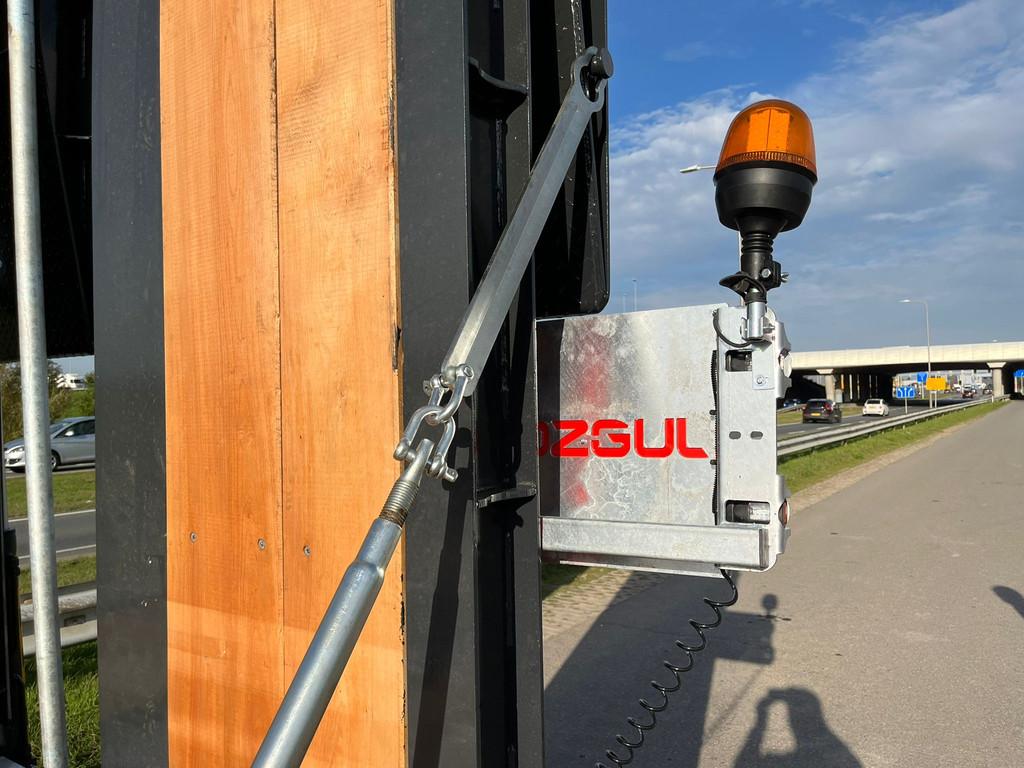

• 2 x Registration Plate Lights - 2 x rotating Lights

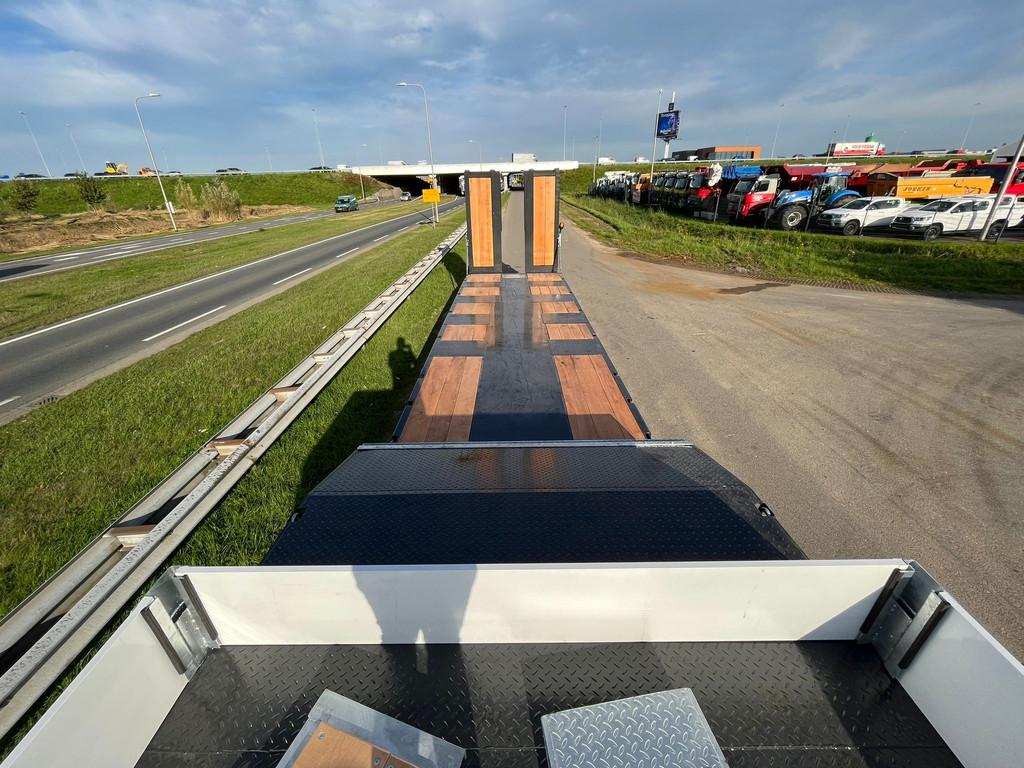

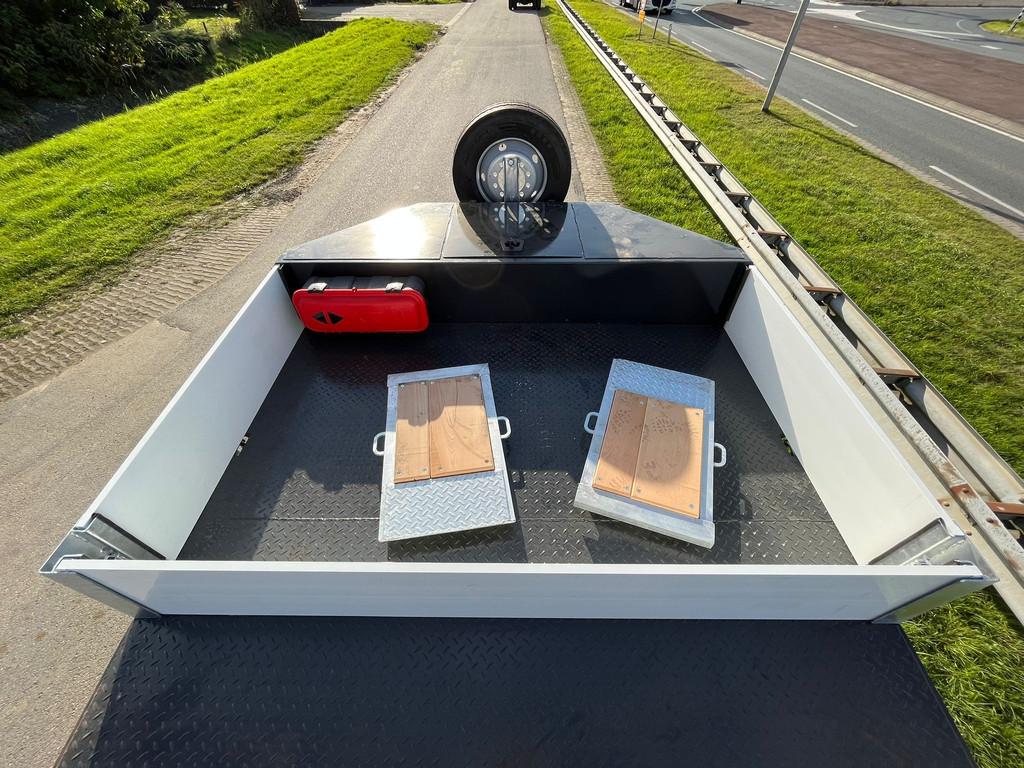

Floor
Above tyres and edges of platform are covered chequered sheet and hard wood,the
middle surface is covered by flat sheet steel.

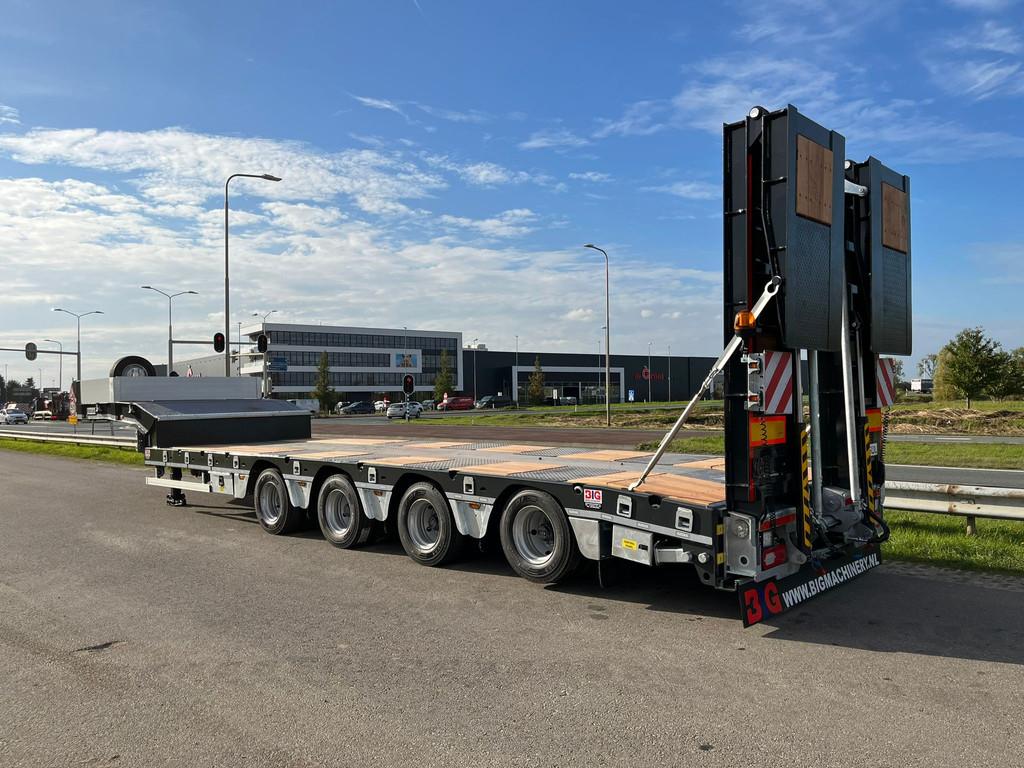

Rear Loading Ramps

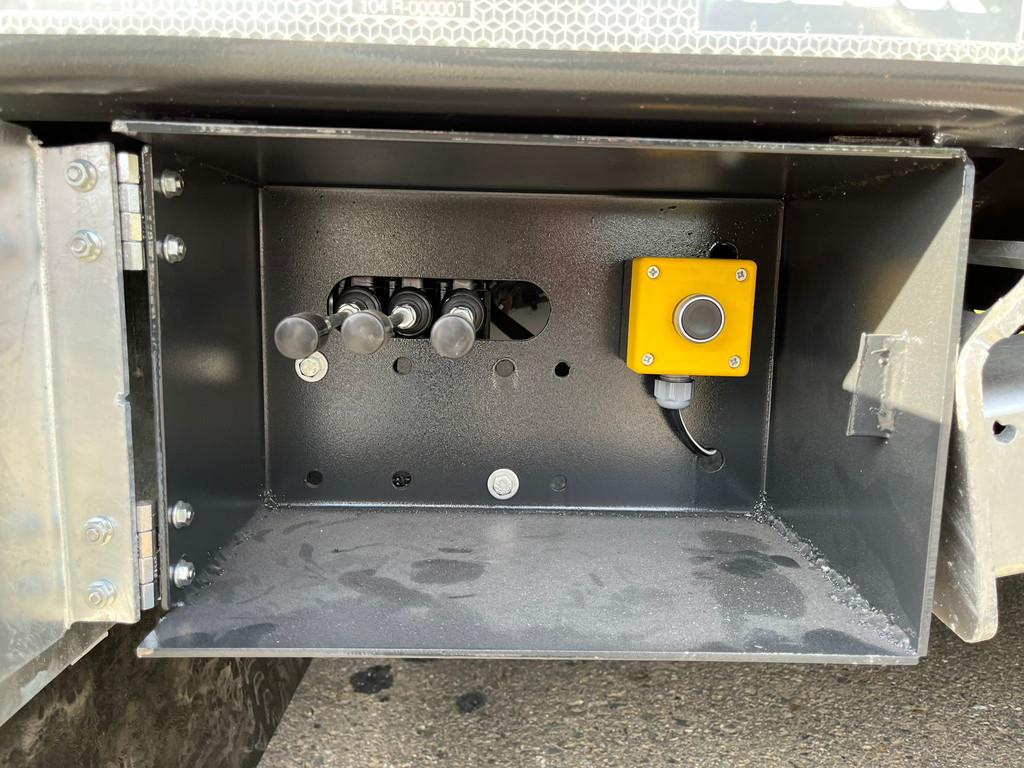

:Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic
function with cable push – button for remote control.Folding type rear ramps length
2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal
and external hydraulic. Short steel ramps behind of neck.
Color : Upon Request
Paint Application
Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats
of acrylic paint.
TECHNICAL SPECIFICATIONS
Accessories

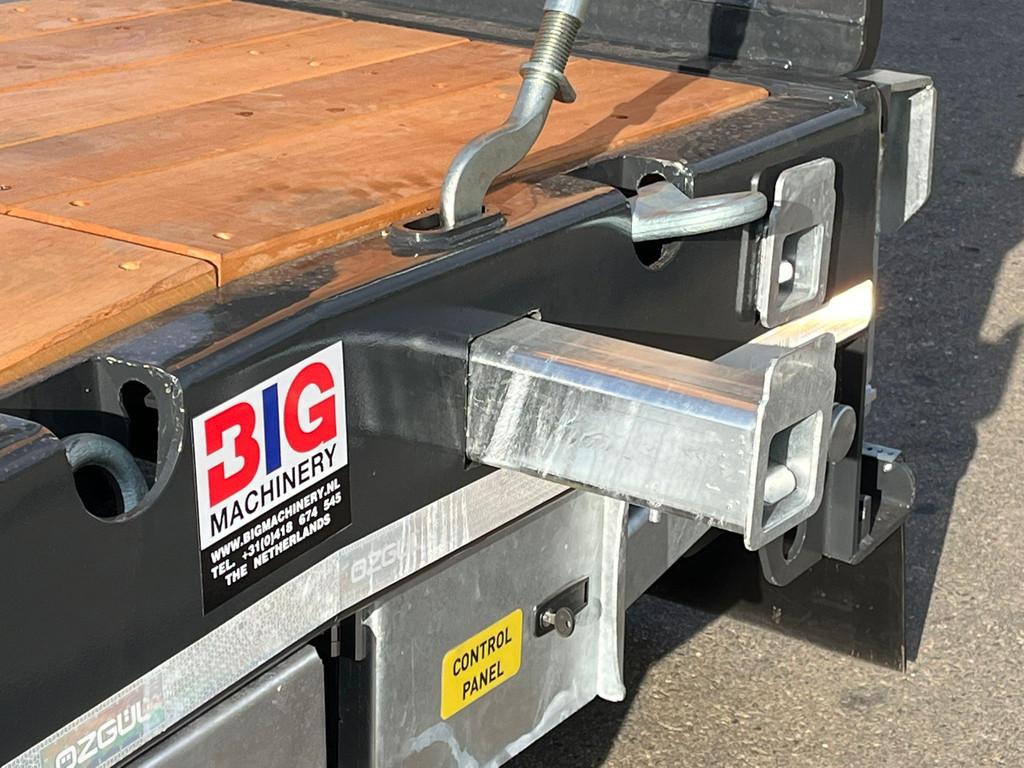

• 2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
• 4 x Certificated Expray mud flaps.
• 1 x Plastic water tank
• 2 x Wheel chocks and holders
• 2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
• 2 x Side Protections, Aluminium

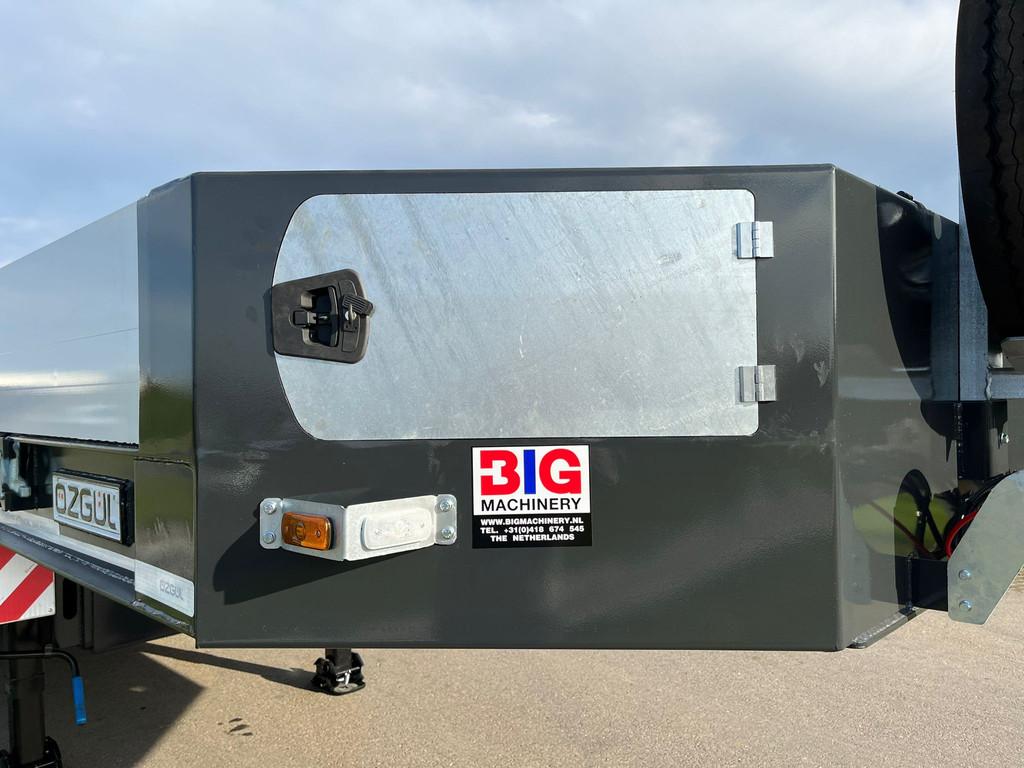

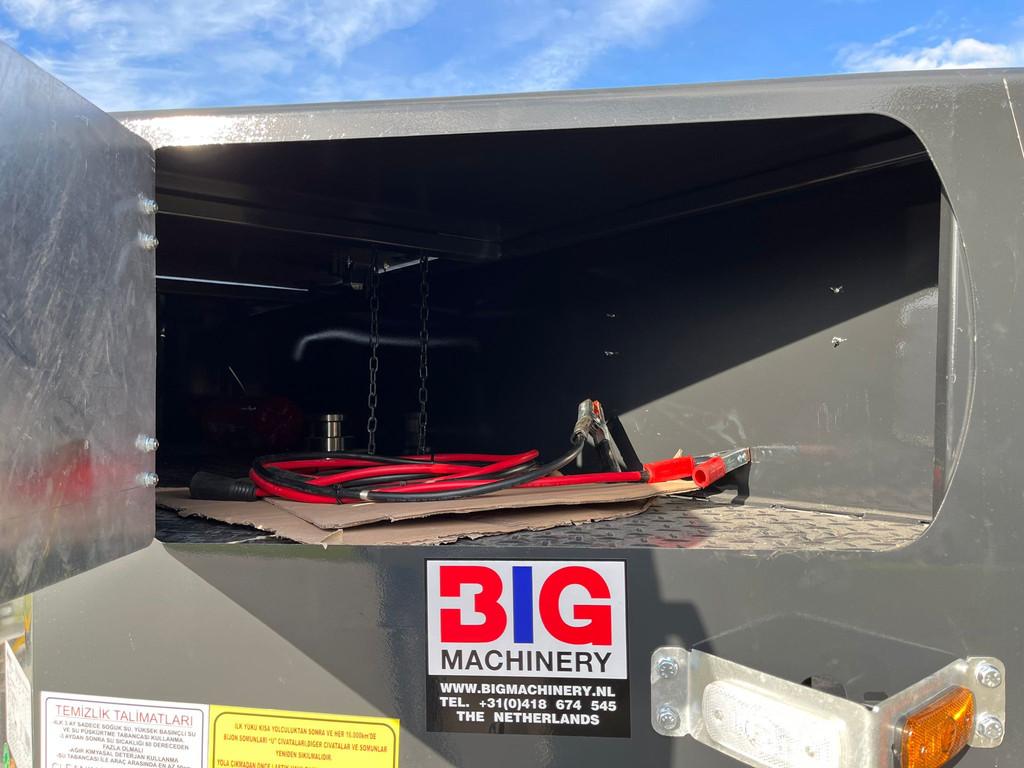

• 1 x Tool box.

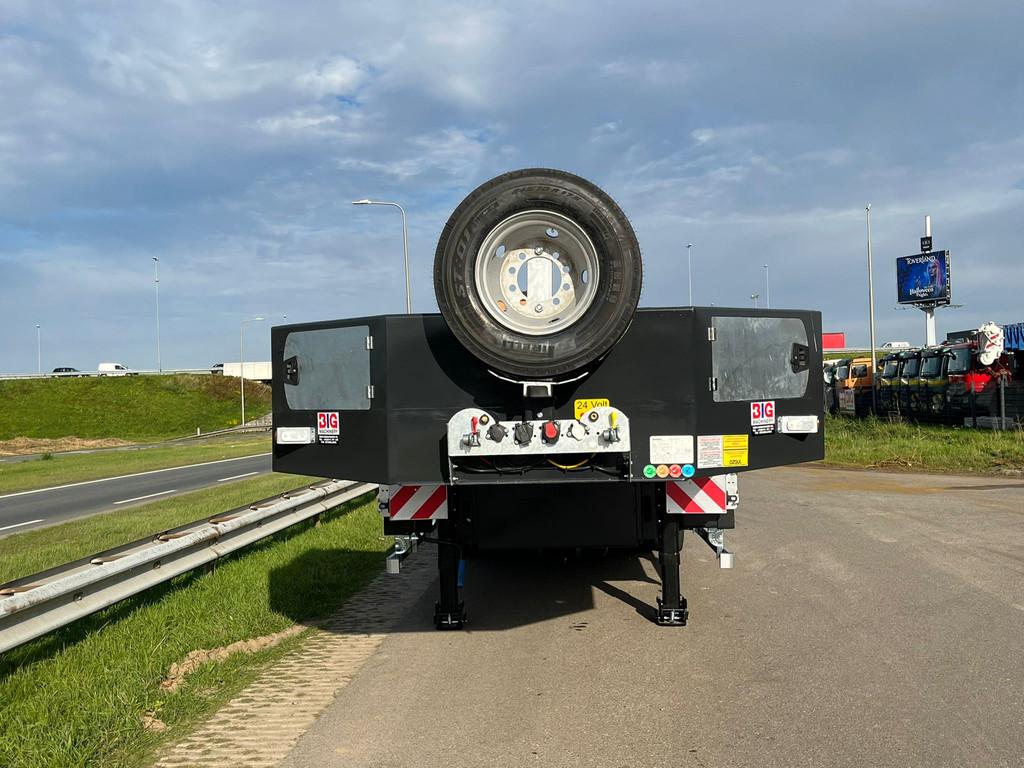

• 1 x spare Wheel carrier with 1 tire(on the gooseneck)

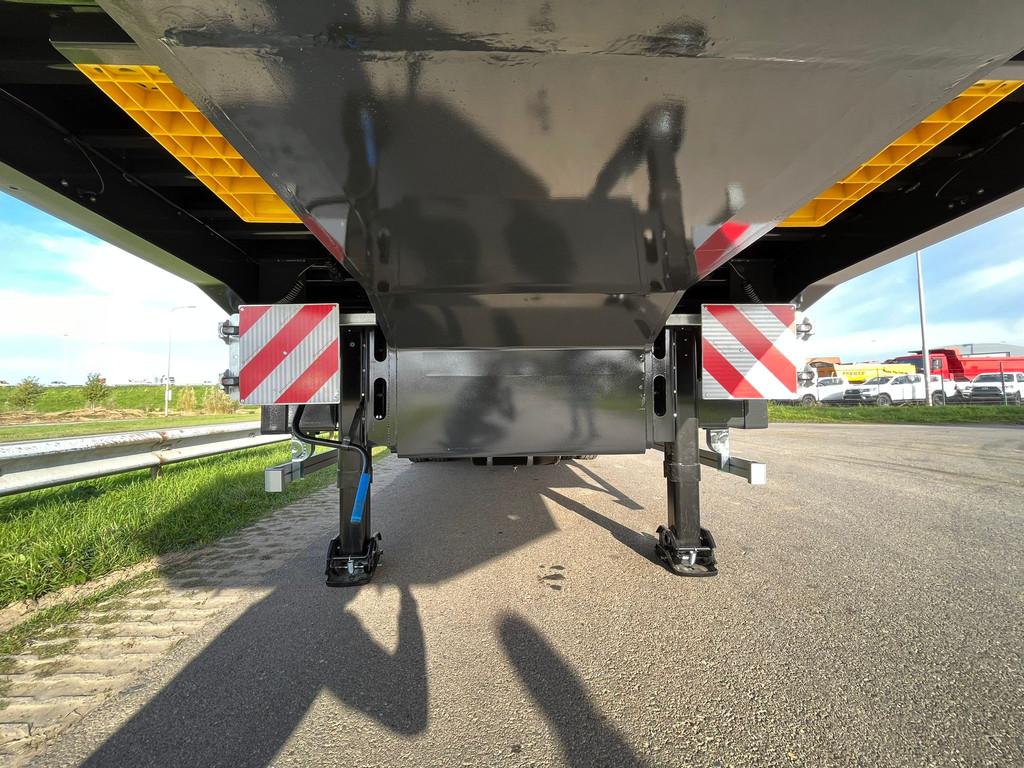

• 2 x Manual support Legs at the rear.

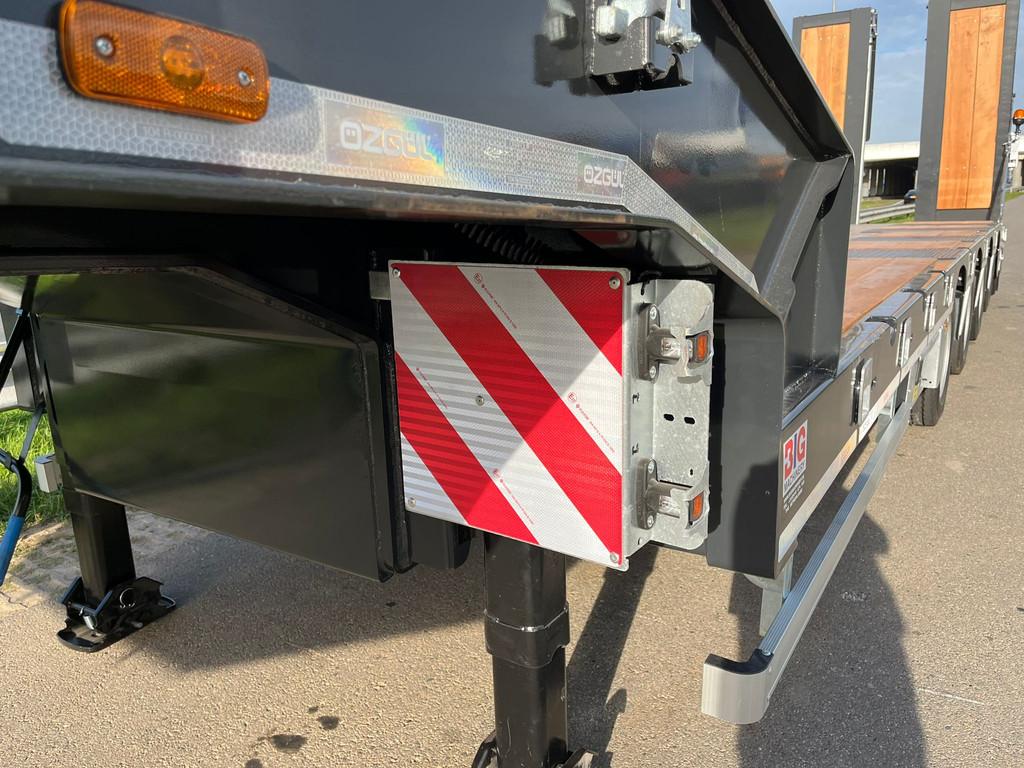

• 2 x Reflective tape and reflector sign at the rear and sides.
• 2 x Side extensions reflector
• Steel front panel(height:400mm)
• Aluminum side panels on gooseneck section(height:400mm)
• 1 plaque places on rear ramps or bumper
