Type: Grondboormachine
Toepassingsgebied: Bouw
BTW: De getoonde prijs is exclusief BTW

Type: DRILLING RIG
Brand: EMCI
Model: SILEA 45
Serial number:
hours on meter : 3174
Manufactured: 2014
Power: 50 HP
Dimensions: L/H/W 3.80/1.90/1.30

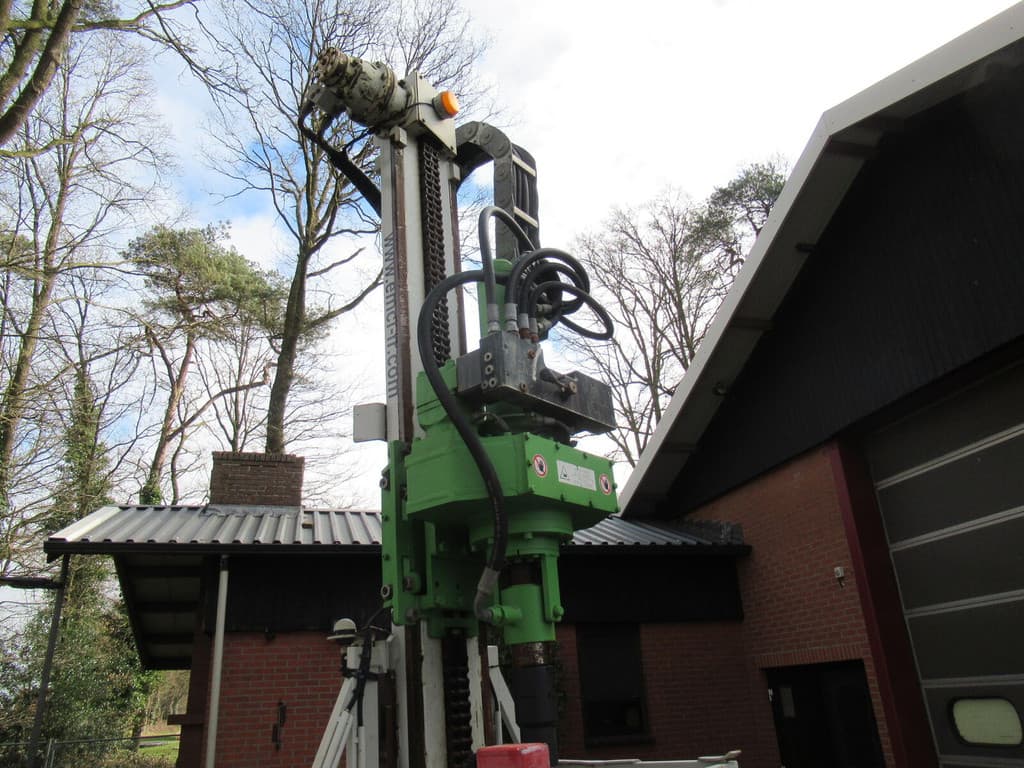

Crawler DRILL RIG EMCI SILEA 45
Multipurpose drill rig for :
- core drilling
- geotechincal jobs


PARAMETERS

ENGINE: HATZ 3L41C, 50 KM at 2300 rpm

Strokes of rotary head/ feed lengt: 2300 mm
PULL DOWN FORCE: 15 kN (1.5 Tons)
PULL BACK FORCE: 25 kN (2.5 Tons)

Winch: Hydraulic line for winch

ROTARY HEAD:
- 4 gears hydraulic
- Max. torque: 430 daNm - 430 kg/m !!!
- Max. Speed: 300 Rpm
- Drifter/Percussion

DOUBLE CLAMPS:
Max. open diameter: 170 mm

TRIPLEX PUMP BERTHOUD for core drilling
Out put flow: 80 l/min
Pressure max: 40 bar

STORAGE:
For drill rods and casing pipes

Rubber tracks
Remont control for driving IMET
Rig is controlled by hydraulic levers !!!
Weight: 2650 kg
