Massenza MI6 drilling rig

Type: Grondboormachine
Toepassingsgebied: Bouw
Afmetingen (LxBxH): 700 x 280 x 240 cm
BTW: De getoonde prijs is exclusief BTW

Id: BG02236
Power: 115 kW (156 PK)
General state: Good
Technical state: Good
Optical state: Good

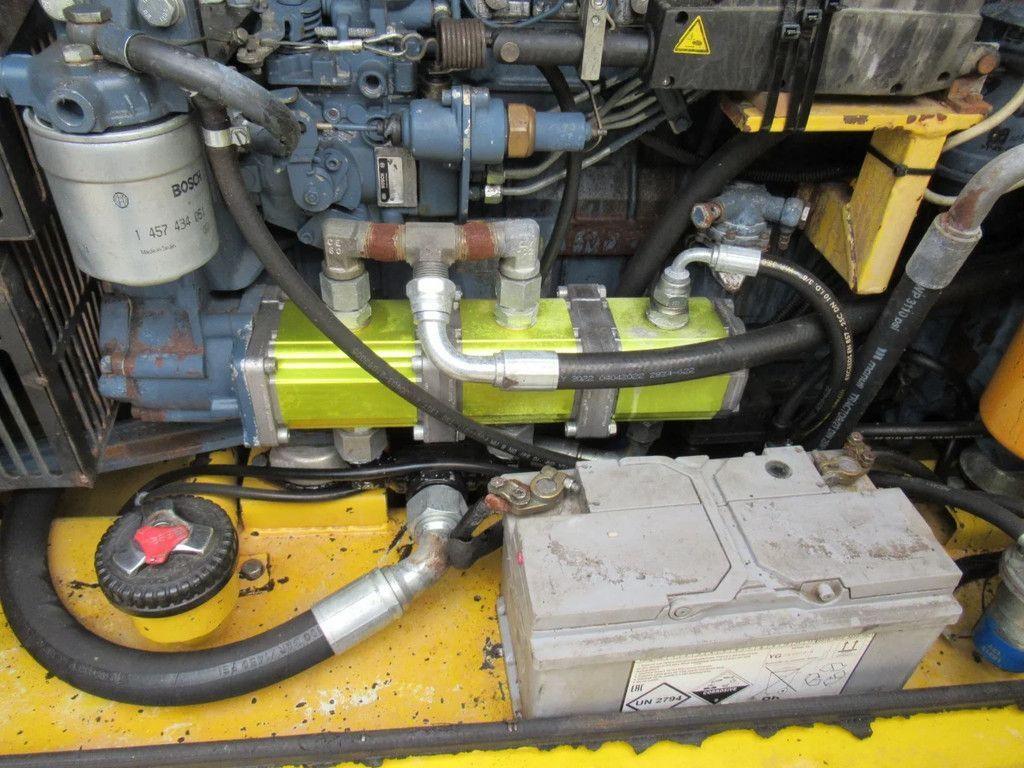

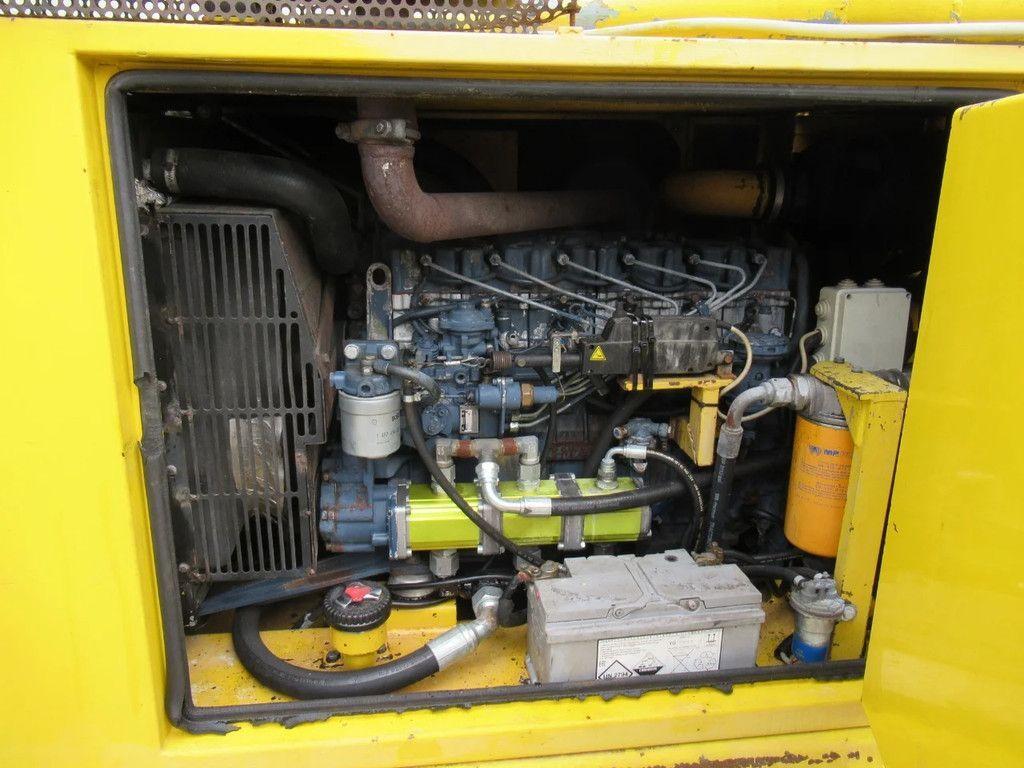

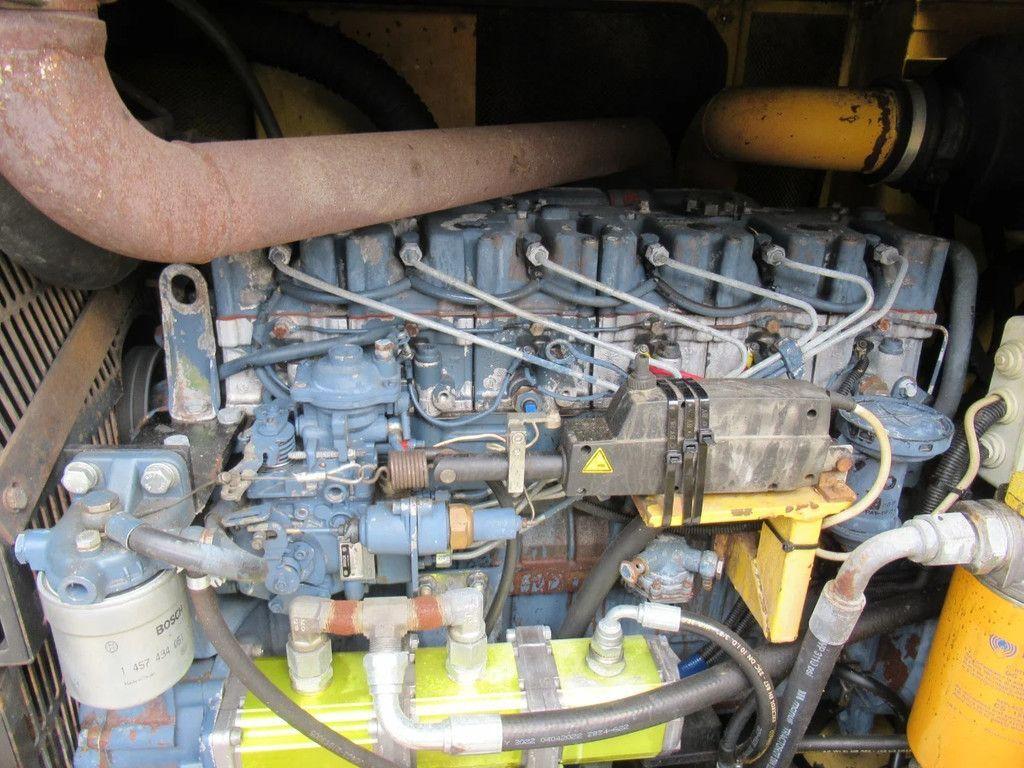

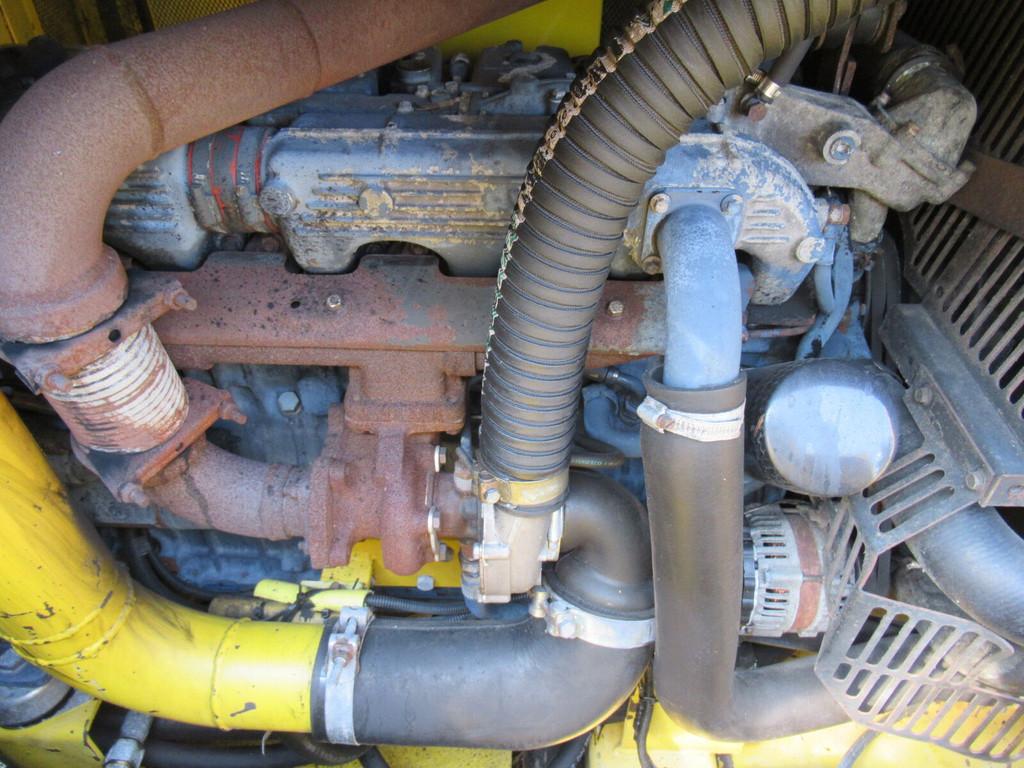

Engine: VM - 6 cylinder, liquid-cooled, 156 HP
Hours on meter: 3852
Manufactured: 2005
Strokes of rotary head/ feed length: 3760 mm
Chain strength in tension: 20.183 kg (44.496 lbs)
BG0236
Power 156 HP
Dimensions L/H/W 7.00/2.80/2.40

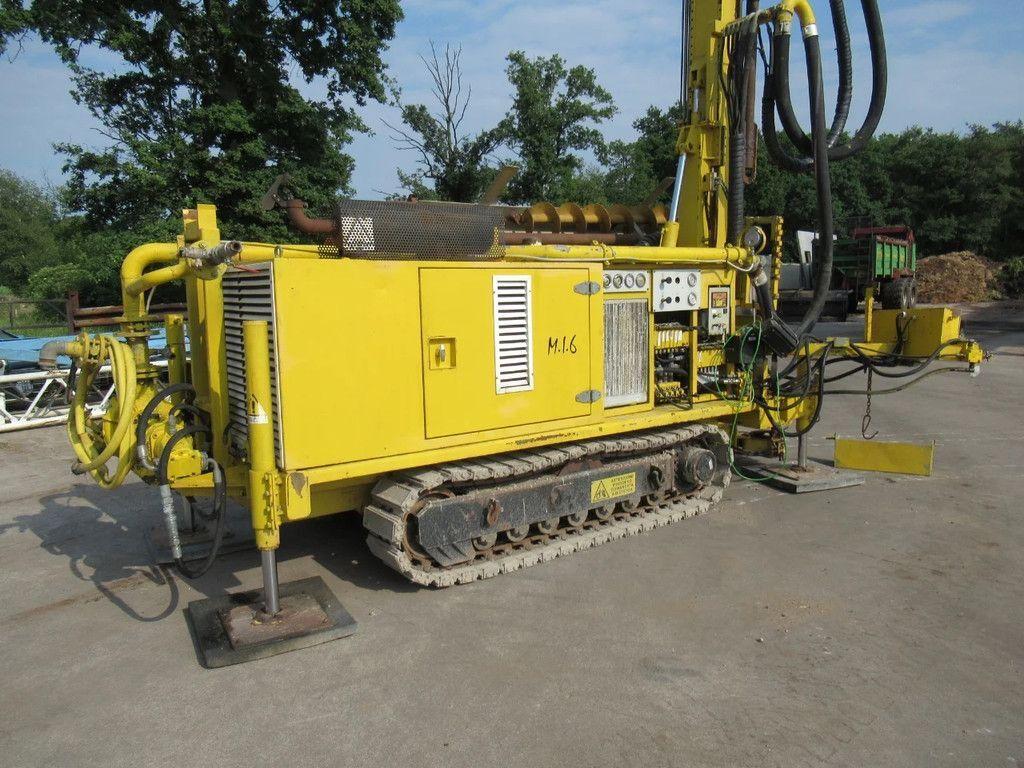

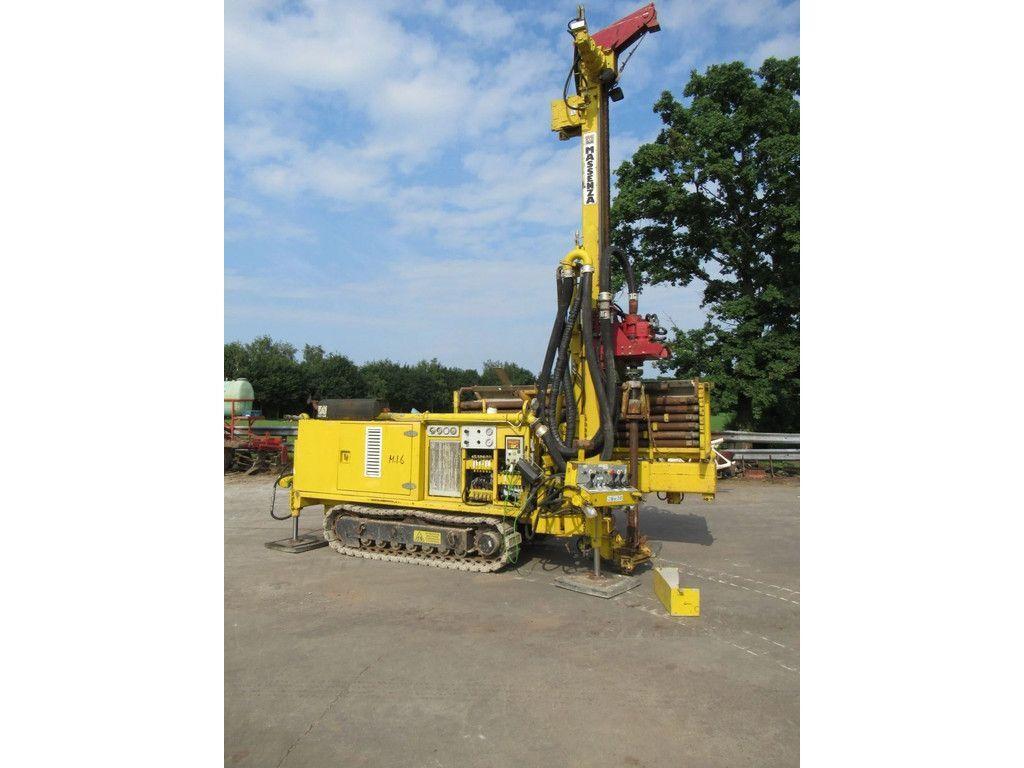

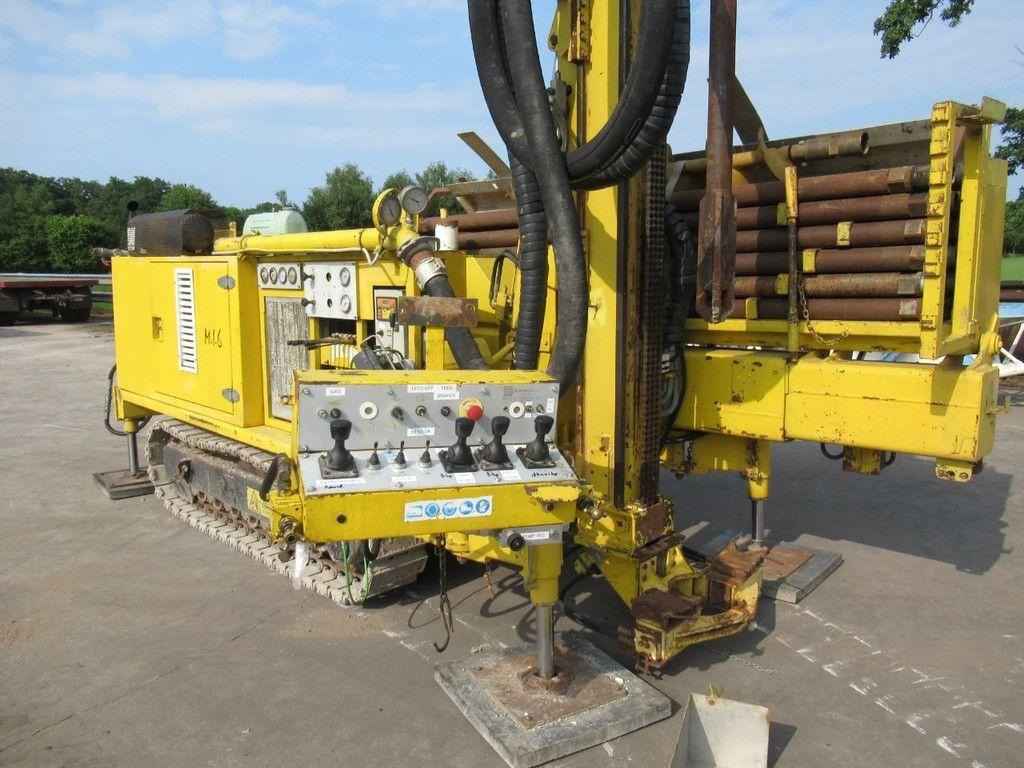

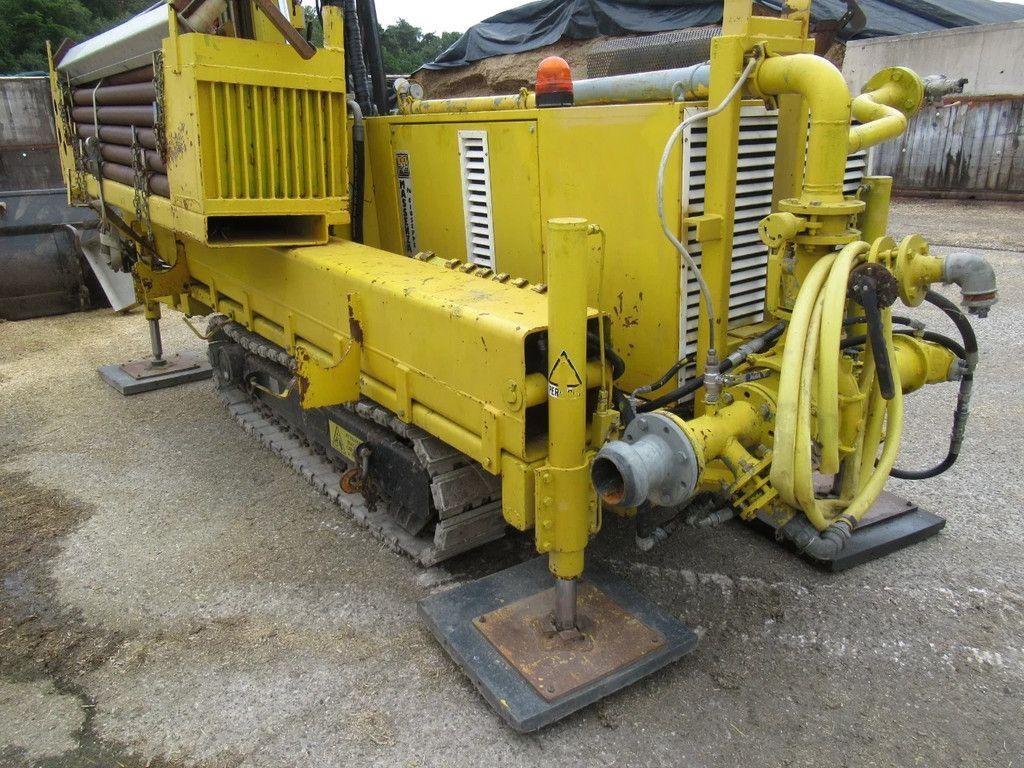

MASSENZA HYDRAULIC DRILLING RIG MODEL MI6 mounted on TRACKS
Used for water well research and geothermal applications
PARAMETERS
Engine: VM - 6 cylinder
liquid-cooled
156 HP
PULL-DOWN SYSTEM
Hydraulically powered device by means of geared motor and heavy-duty high resistance chain. Hydraulically adjustable feed system of pull-down and hold back pressure on drill string
Pull-up max 56 kN (5,6 Tons) (12.346 lbs)
Pull-down max 56 kN (5,6 Tons) (12.346 lbs)
Up-down adjustable handling fast feed rate from 0 to 35 m/min

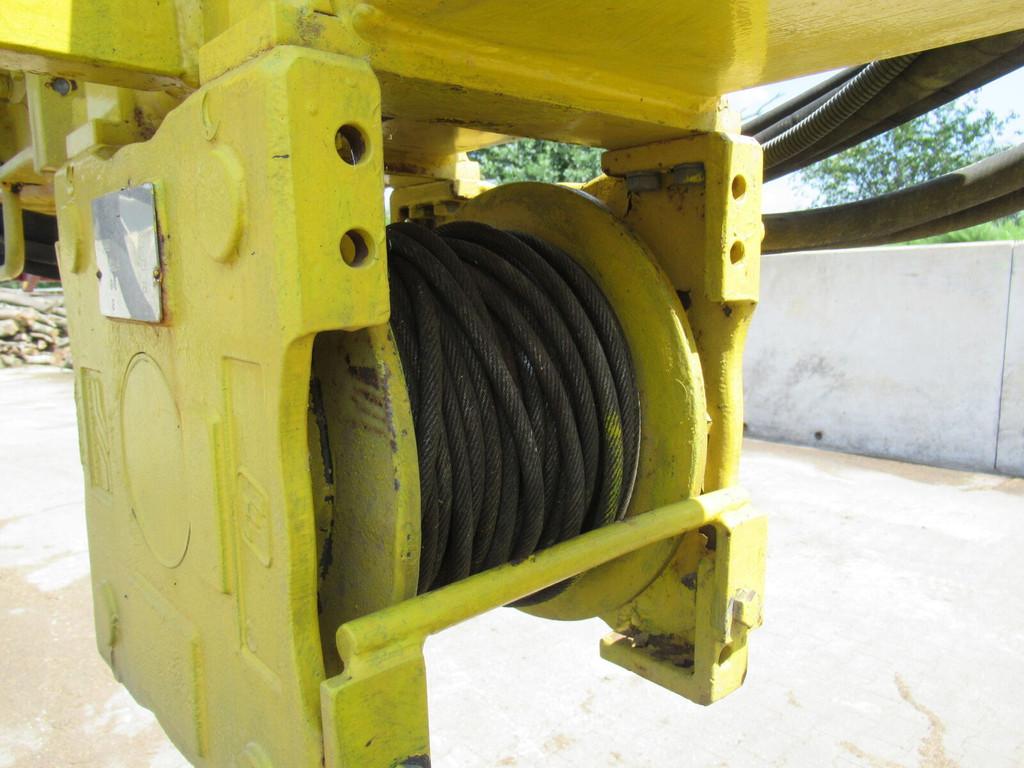

SERVICE WINCH
Complete with 30 m of steel cable Ø 10 mm
Direct line pull 22 kN (4946 lbf)

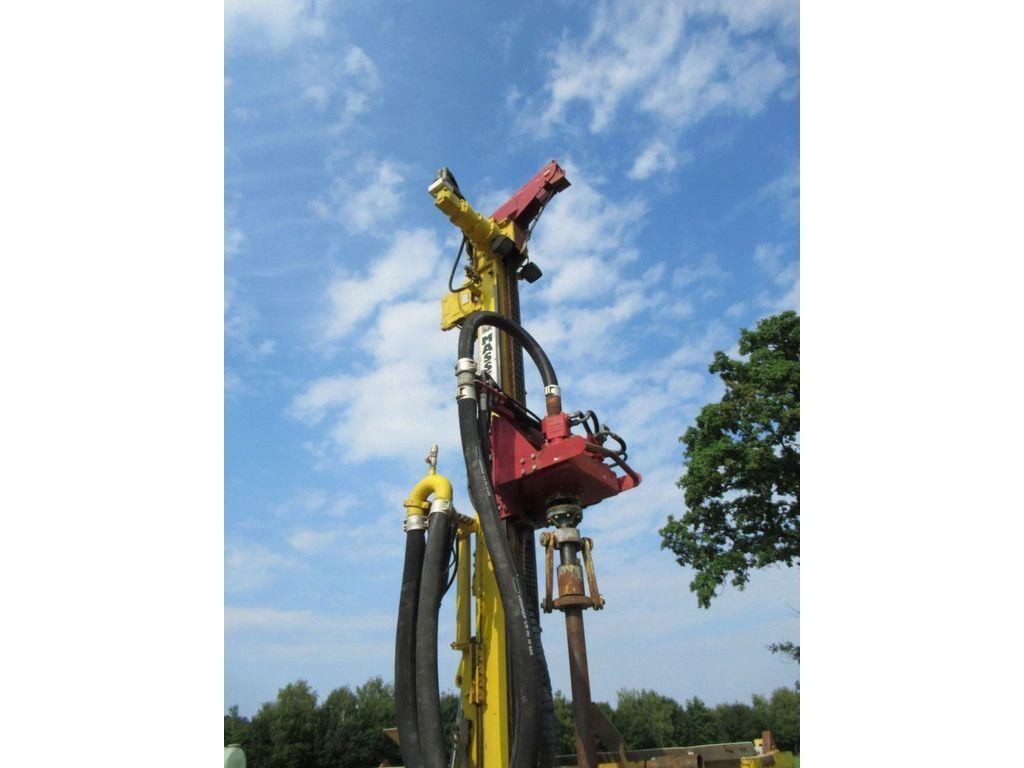

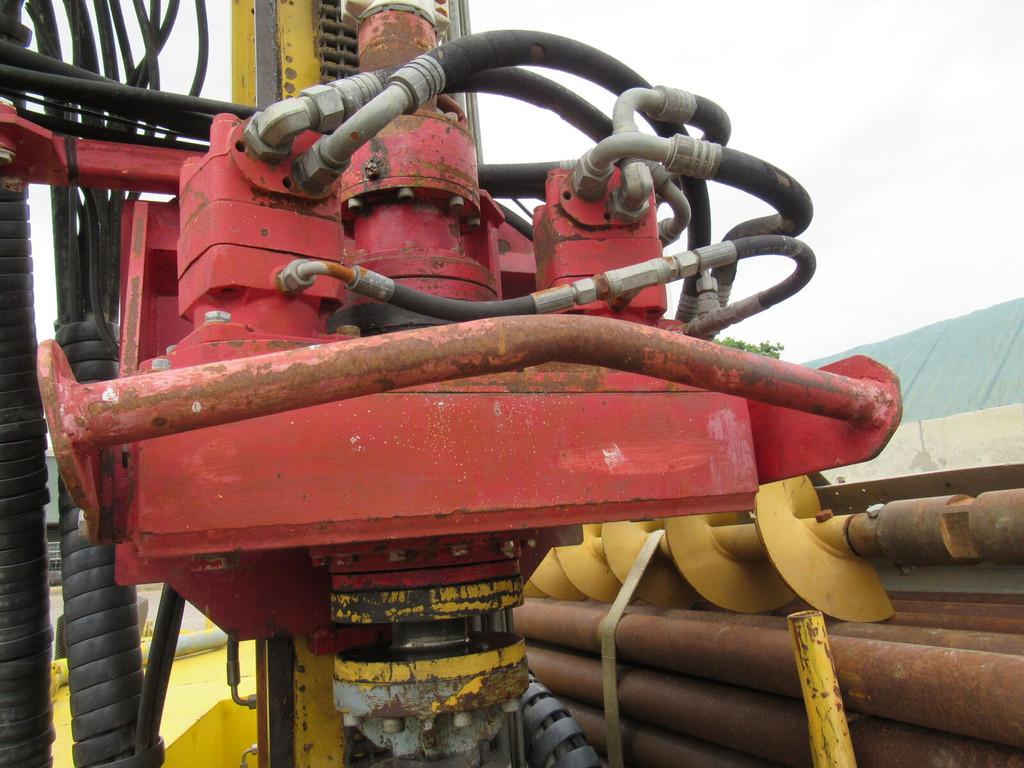

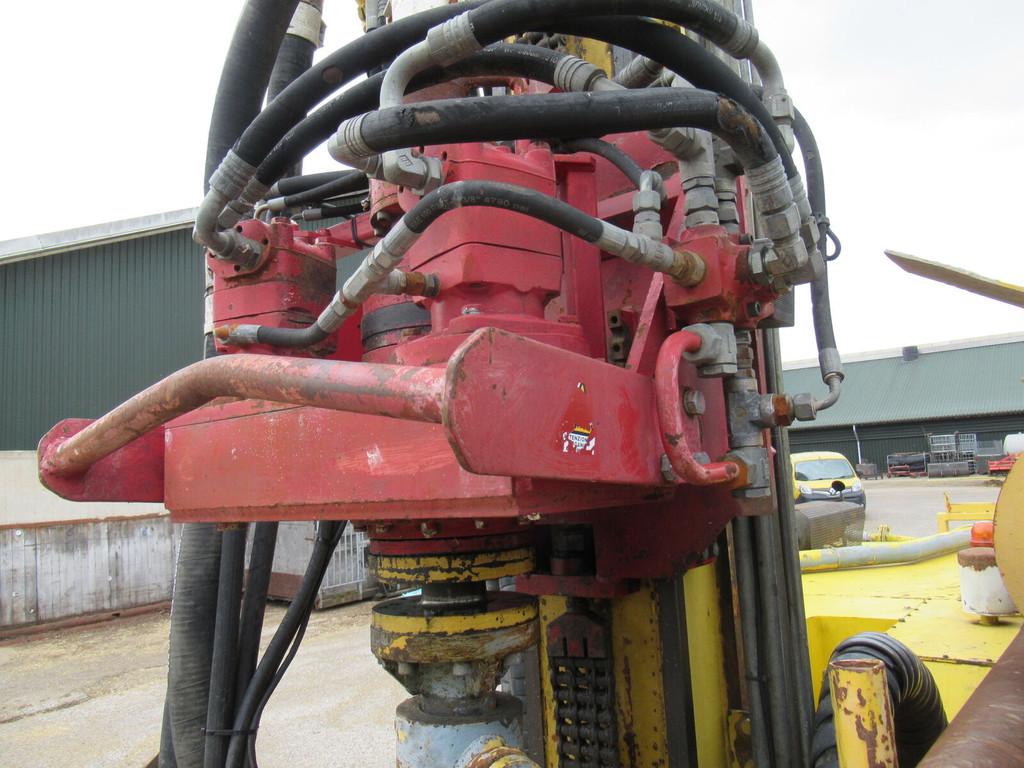

MASSENZA ROTARY HEAD model TM6.1
Internal diameter 50 mm (2")
Torque 6000 Nm - Speed 76 Rpm
Torque 3000 Nm - Speed 152 Rpm

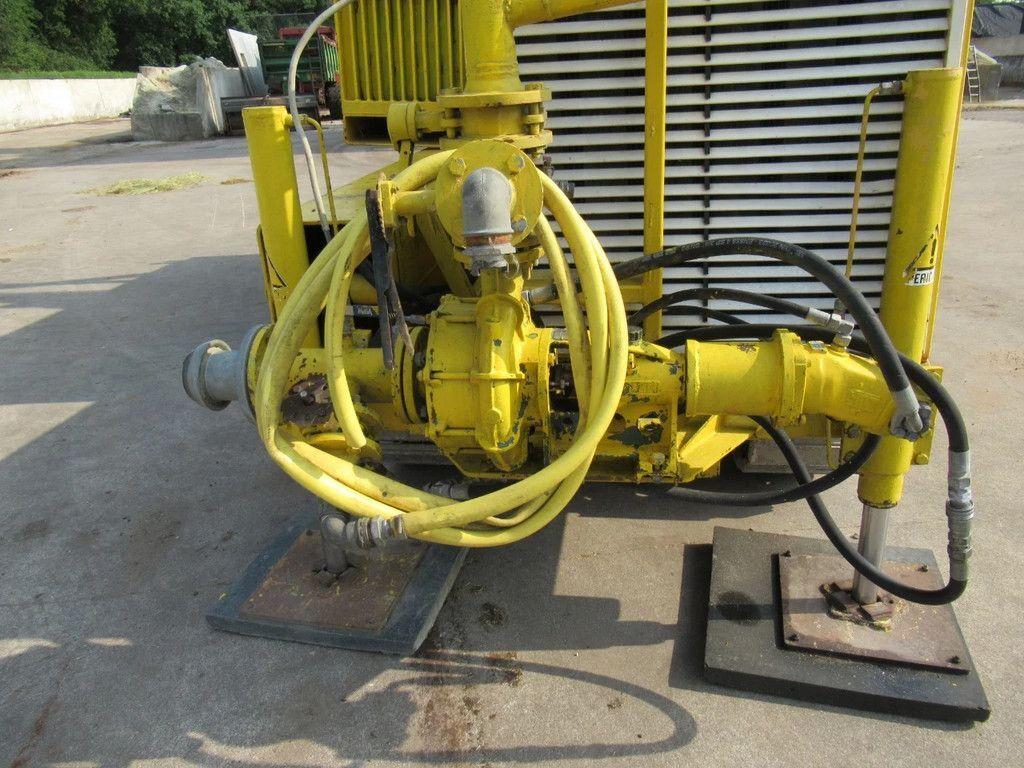

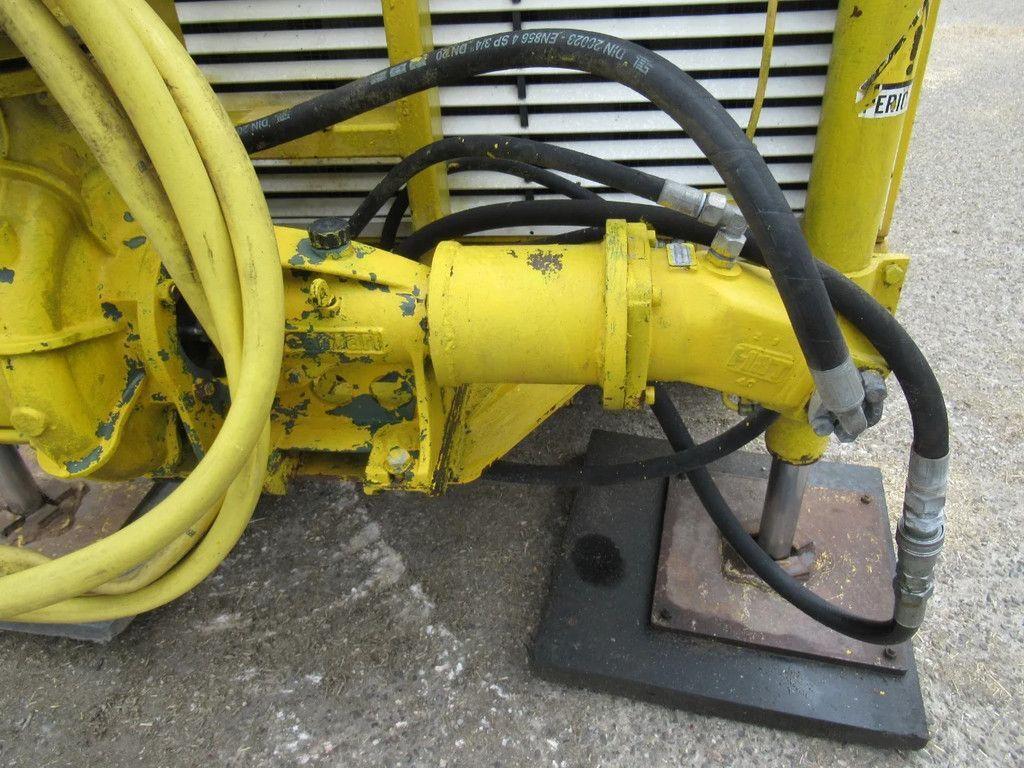

MUD PUMP CAPRARI TWO STAGE ROTOR
Output flow max 1500 l/min
Pressure max 16 bar
STORAGE
For drill rods and casing pipes

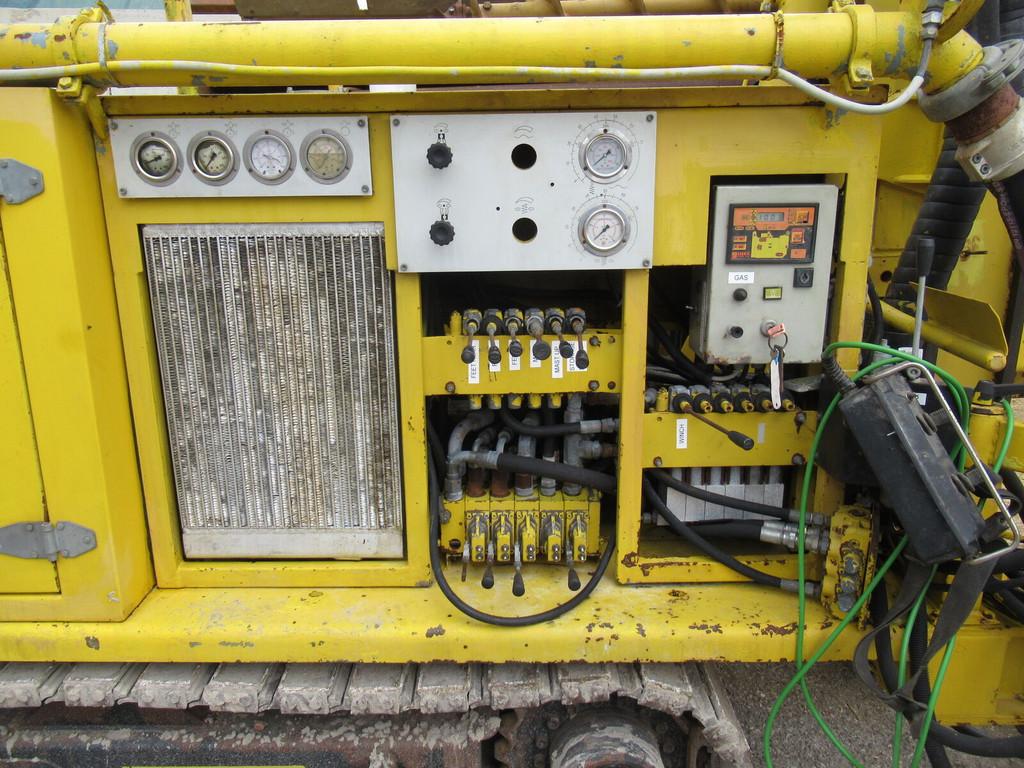

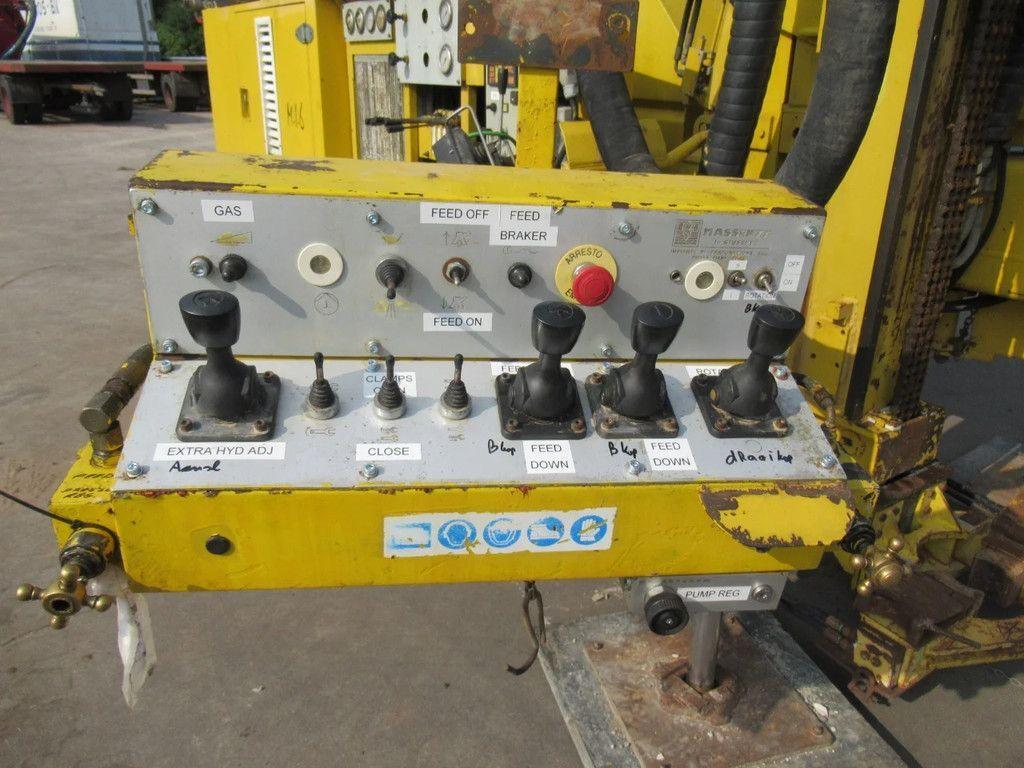

Rig is controlled by hydraulic levers !!!
