Algemene informatie
Type: Weg-terreinkraan
Referentienummer: GROVE - GMK6300L-1 - 64099
Serienummer: 63006188

Aandrijving
Aandrijving: Wiel

Functioneel
Hefcapaciteit: 300.000 kg

Overige informatie
Resterend profiel voorbanden: 0
Resterend profiel achterbanden: 0
Contragewicht: 92500
Afmetingen (LxBxH) (m): 17.09x2.99x3.99

Meer informatie
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

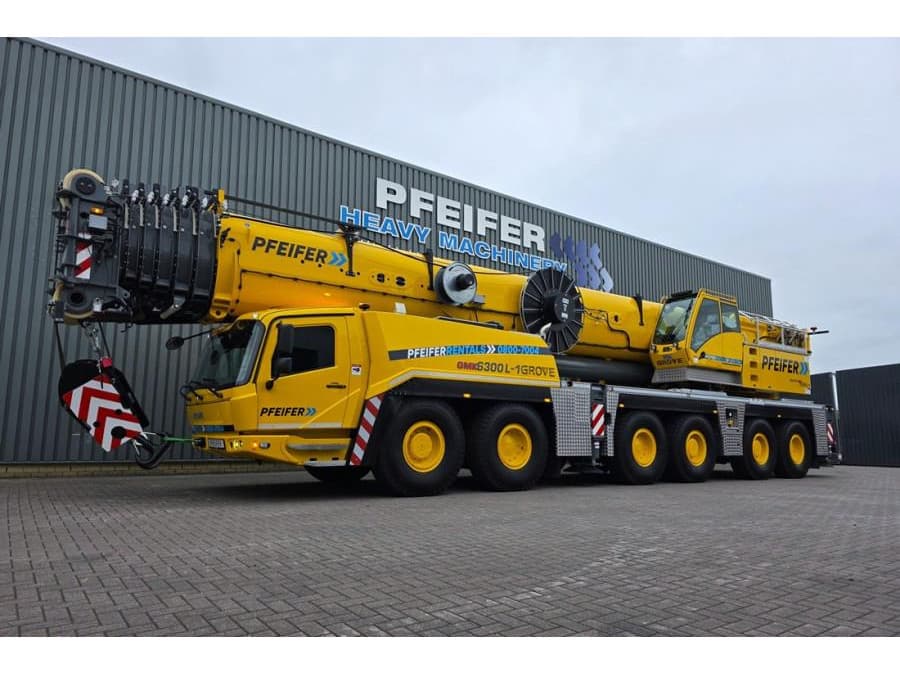

Grove GMK6300L-1 Available for Rental

Rent the powerful Grove GMK6300-L all-terrain crane for your lifting projects. With an impressive 300-ton lifting capacity and a maximum main boom length of 80 meters, this crane is ideal for a wide range of heavy-duty applications.

Available for both bare rental and operated rental, depending on your project needs. Flexible, reliable, and ready for deployment.

Manufacturer: Grove
Typ: GMK6300-L
Manufacturer Year: 2025
Fuel: Diesel

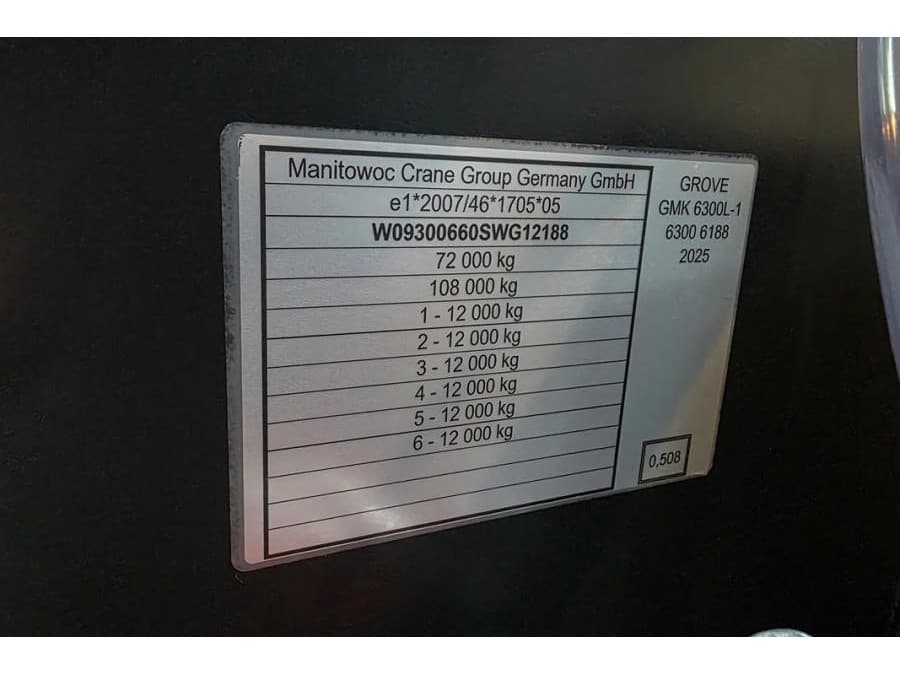

Chassis number: W09300660SWG12188
Serial number: 63006188

Max. lifting capacity: 300 tons
Main boom: 15.6 m – 80 m
Hydraulic bi-fold swing away Jib 12 m to 37 m
Counterweights: 92.5 ton

Engine:
Mercedes OM502LA
Power: 405 kW (551 HP)
Torque: 2600 Nm

Drive Configuration:
12x6x12

Dimensions
Overall Length (with boom): Approx. 17.10 m
Overall Width: 2.99 m
Overall Height (transport position): 4.00 m

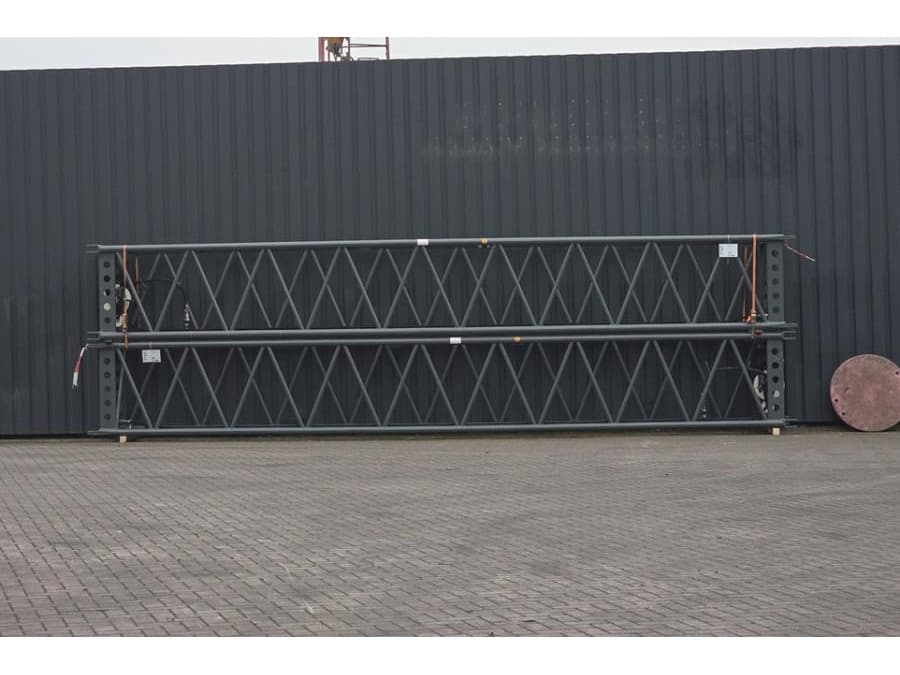

37.0m offsetable jib consisting of 21.0m bi-fold swing away and 2 x 8m intermediate
sections. Bi-fold swing away hydraulically offset from 5° to 40° including transport
and mounting rack for hose reel, testing, calibration of RCL and load charts.

Auxiliary hoist, self-rigging with counterweight, axial piston motor with planetary gear
and automatic multiple disc brake. Drum rotation indicator, 330 m of 22mm wire rope.
Including second upper head sheave on boom. Hoist camera and working light.

5 sheave hook block with double hook and dead end. [125 tons hook block capacity].
3 sheave hook block with double hook and dead end. [80 tons hook block capacity].
Single line headache 300kg [12 tons headache ball capacity].

Additional 38 tons counterweight consisting of 2 x 9 tons and 2 x 10 tons removable
slabs. Includes testing calibration and load charts.

Hydraulic retarder integrated in gear box.
MAXbase - variable positioning outriggers.
Wireless remote control for all crane functions
Boom mounted aircraft warning light (switchable permanent or flashing).

Dutch vehicle registration
All necessary documents and papers.
CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
