Hefcapaciteit: 1.000 kg
Werkhoogte: 3.400 cm
BTW: De getoonde prijs is exclusief BTW
Referentienummer: HOLLAND LIFT - Megastar G-320DL30-4WDS/N - 90085
Serienummer: G320-00-6069
Resterend profiel voorbanden: 70
Resterend profiel achterbanden: 70
Afmetingen (LxBxH) (m): 7.02x2.98x3.63
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

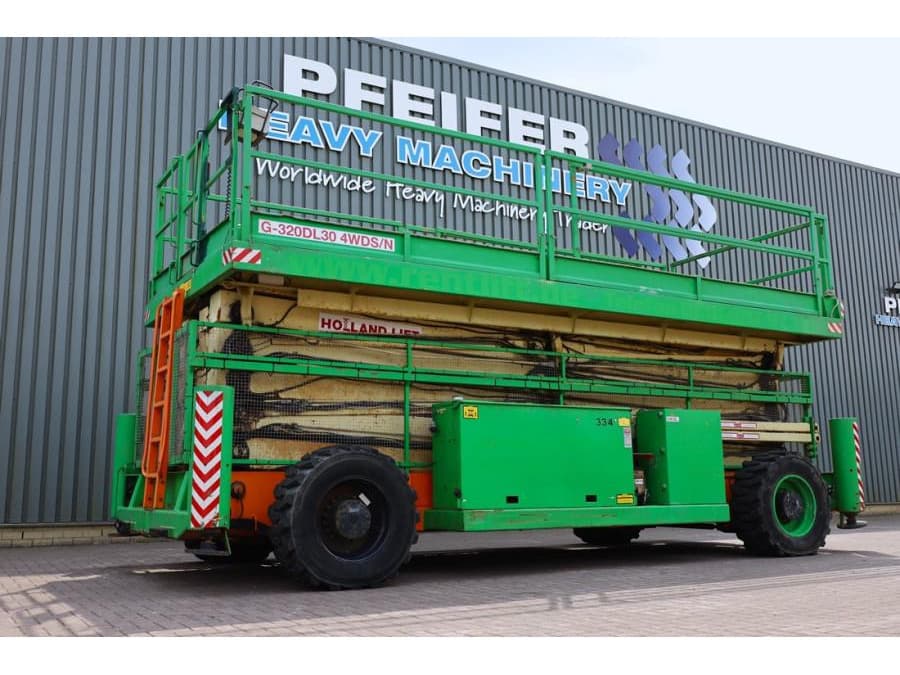

Manufacturer: Holland lift
Typ: G-320DL30-4WDS/N
Building year: 2007
Fuel: Diesel
Serial number: G320-00-6069
Working hours: 819 h

Dimensions & Performance
Max. working height: 33.70 m
Max. platform height: 31.70 m
Min. platform height: 2.47 m

Platform dimensions (retracted): 6.66 m × 2.80 m
Platform dimensions (extended): 9.66 m × 2.80 m

Transport height: 3.63 m
Transport height (handrail folded): 2.87 m
Transport dimensions (L×W): 7.02 m × 2.98 m

Wheelbase: 4.63 m
Ground clearance: 360 mm
Turning radius (outside): ± 7.70 m
Tyres: Wide Wall / 385/65-22.5: 70%

Capacity & Weight
Platform load (retracted or extended): Max. 1000 kg (4 persons + 680 kg)
Driving speed (high / low): 3.5 km/h / 0.5 km/h
Gradeability: ± 35%
Engine: Hatz 4L41C (Silent Pack)
Gross weight: 31.200 kg

Features
Proportional drive and lift control
Driveable Till 8m Height
Four-wheel drive (4WD)
Four-wheel steering (4WDS)
Levelling jacks (stabilisers)
Lubrication system (Auto Lube)
Differential lock for increased traction

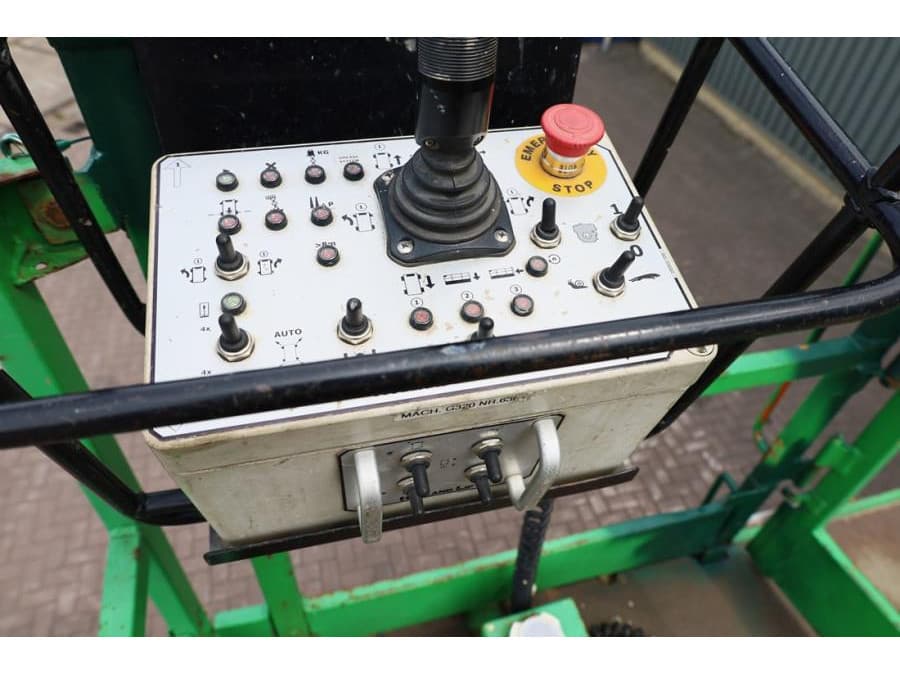

Quick disconnect control box
Power supply on the platform

Applications
Suitable for indoor and outdoor use
Ideal for high-reach tasks on uneven terrain due to 4WD & levelling

CE (Declaration of Conformity)
All necessary documents and papers.

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
