Werkhoogte: 3.370 cm
BTW: De getoonde prijs is exclusief BTW
Referentienummer: HOLLAND LIFT - Megastar G320DL30 4WDS/N - 90376
Serienummer: G320006515
Resterend profiel voorbanden: 50
Resterend profiel achterbanden: 50
Afmetingen (LxBxH) (m): 7.02x2.98x3.63
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

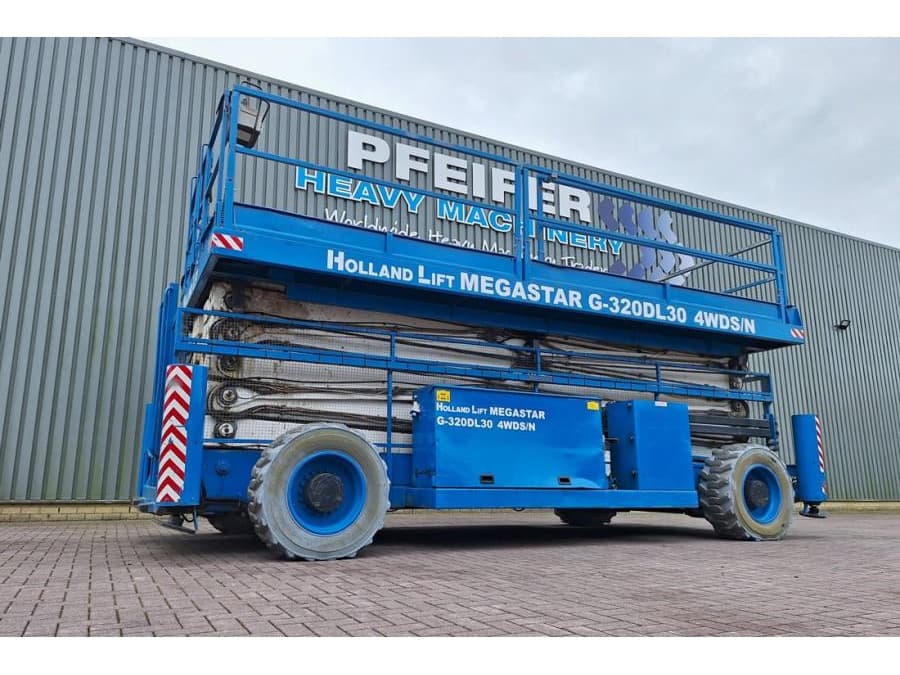

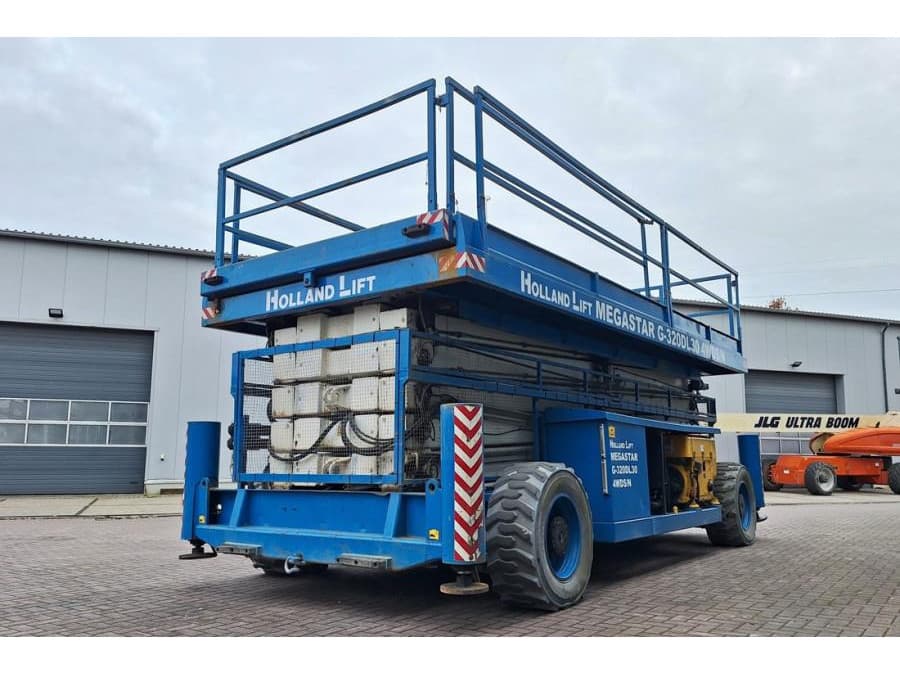

Manufacturer: Holland lift
Typ: G-320DL30-4WDS/N
Building year: 2008
Fuel: Diesel
Serial number: G320006515

Dimensions & Performance
Max. working height: 33.70 m
Max. platform height: 31.70 m
Min. platform height: 2.47 m

Platform dimensions (retracted): 6.66 m × 2.80 m
Platform dimensions (extended): 9.66 m × 2.80 m

Transport height: 3.63 m
Transport height (handrail folded): 2.87 m
Transport dimensions (L×W): 7.02 m × 2.98 m

Wheelbase: 4.63 m
Ground clearance: 360 mm
Turning radius (outside): ± 7.70 m
Tyres: Wide Wall / 385/65-22.5: 50% (Non Marking)

Capacity & Weight
Platform load (retracted or extended): Max. 1000 kg (4 persons + 680 kg)
Driving speed (high / low): 3.5 km/h / 0.5 km/h
Gradeability: ± 35%
Engine: Hatz 4L41C (Silent Pack)
Gross weight: 31.200 kg

Features
Proportional drive and lift control
Driveable till 8m height
Four-wheel drive (4WD)
Four-wheel steering (4WDS)
Levelling jacks (stabilisers)
Lubrication system (Auto Lube)

Applications
Suitable for indoor and outdoor use
Ideal for high-reach tasks on uneven terrain due to 4WD & levelling

CE (Declaration of Conformity)
All necessary documents and papers.

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
