Hefcapaciteit: 240 kg
Werkhoogte: 600 cm
Referentienummer: DINGLI - JCPT0607DCH-XD - 63981
Serienummer: JPDCH25F01299
Resterend profiel voorbanden: 0
Resterend profiel achterbanden: 0
Afmetingen (LxBxH) (m): 1.46x0.76x2.08
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

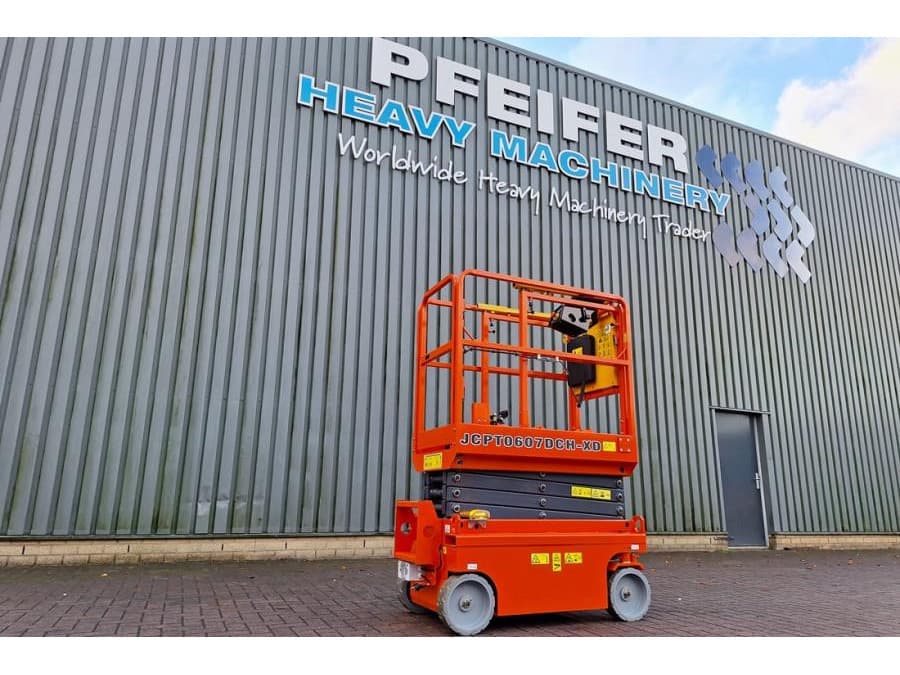

NEW / UNUSED Dingli JCPT0607DCH-XD ELECTRIC MINI SCISSOR.

This Dingli JCPT0607DCH-XD has a valid inspection and can be sold with warranty. Inform about our conditions!

Wide range of Dingli scissor lifts — in stock and ready for immediate delivery!

Manufacturer: Dingli
Typ: JCPT0607DCH-XD
Manuf. Year: 2025
Fuel: Electric
Serial number: JPDCH25F01299

Max. Working Height: 5.60m
Drivable At Full Height

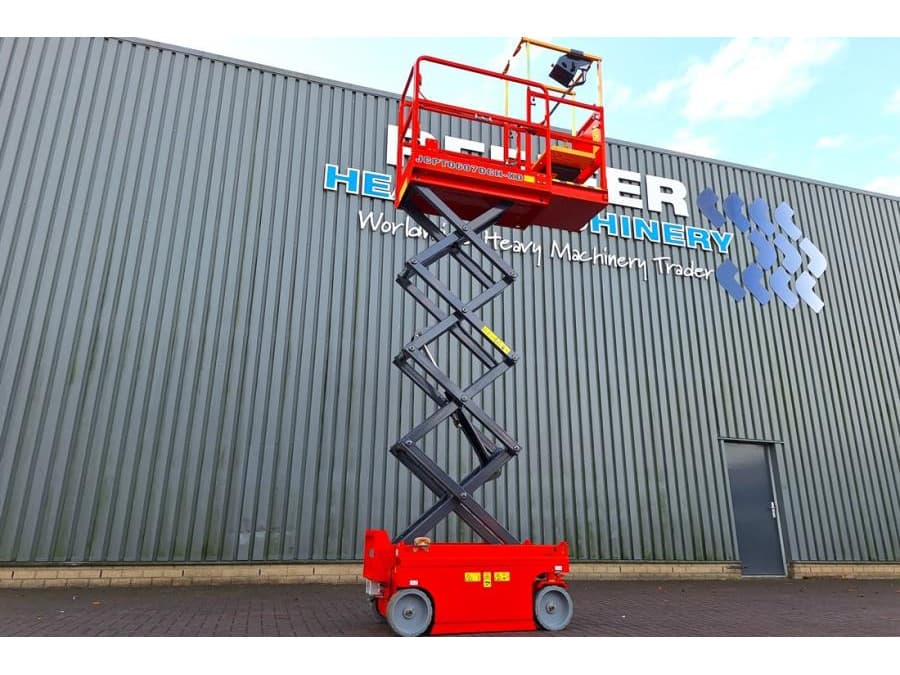

Maximum working height: 6 meters with the extra platform. (See Pictures)

Performance
Safe Working Load: 240kg
S.W.L On Extension: 100kg
Max. Occupants(Indoor/Outdoor): 2/1
Gradeability: 0.25
Travel Speed(Stowed): 4.0km/h
Travel Speed(Raised): 0.6km/h
Max. Working Slope(X/Y): 1.5°/3°
Up/Down Speed: 27/20sec

Overall Length(With Ladder): 1.46m
Overall Width: 0.76m
Overall Height(Rails Up): 2.08m
Overall Height(Rails Down): 1.71m

Platform Size(Length×Width): 1.29m×0.70m
Platform Extension Size: 0.60m
Ground Clearance(Stowed/Raised): 0.07m/0.015m
Wheelbase: 1.06m
Turning Radius(Inside/Outside): 0.40m/1.55m
Tyres: ?305×100mm

Weight
Overall Weight(Lead-acid Battery): 980kg

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
